Horizontal Ladder Access System (HLAS)



Share With:
  • Description

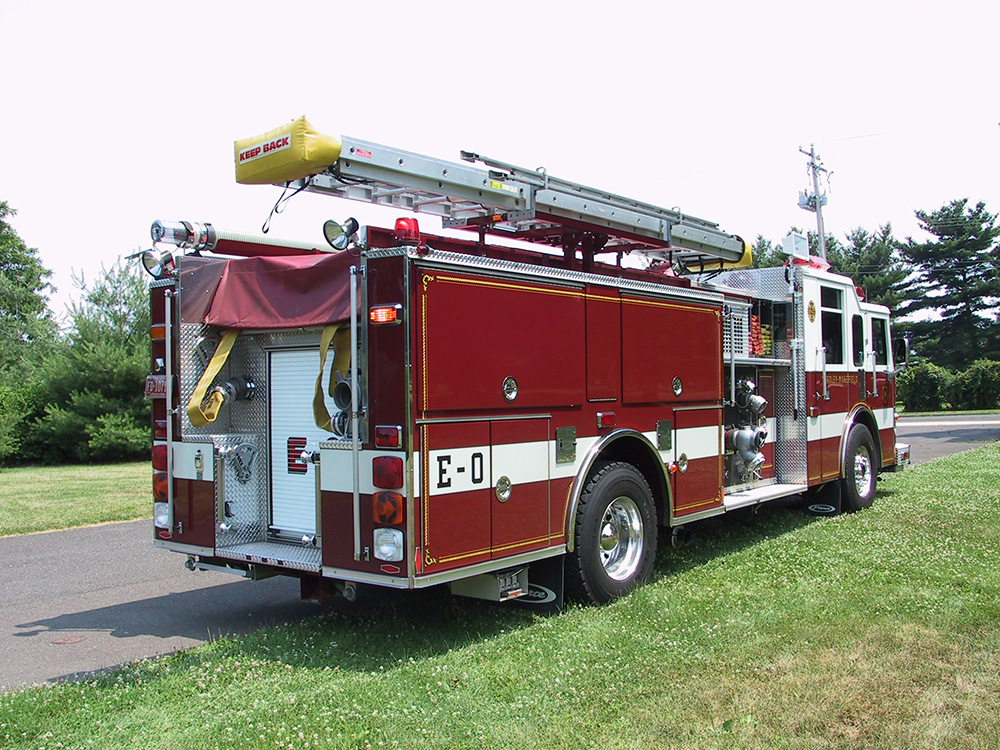

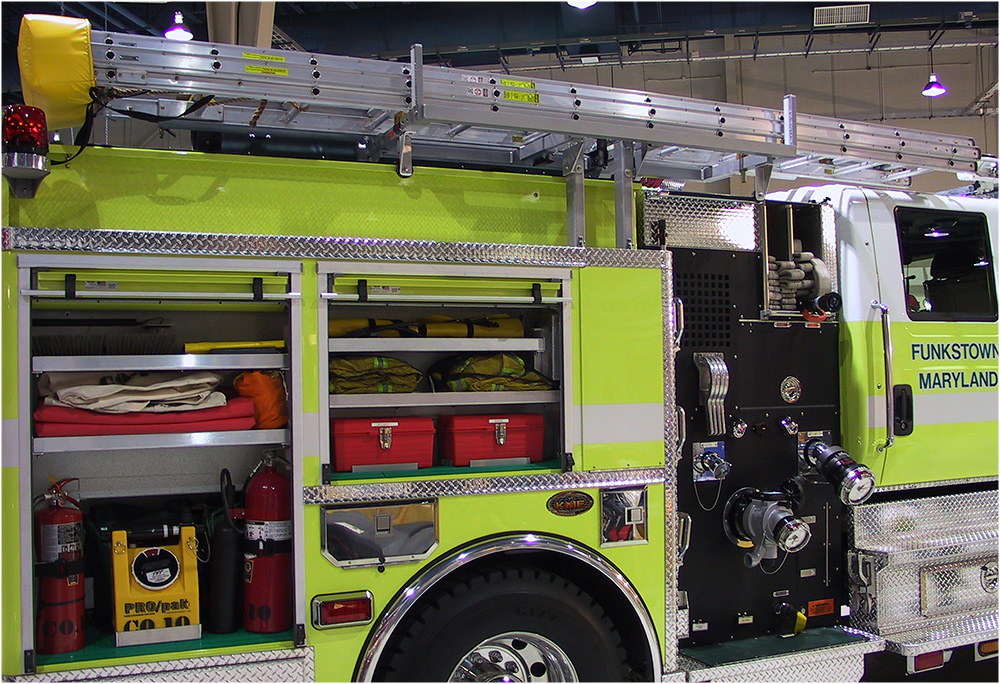

    – Stores ladders horizontally over top of the apparatus, leaving more space for compartments below.

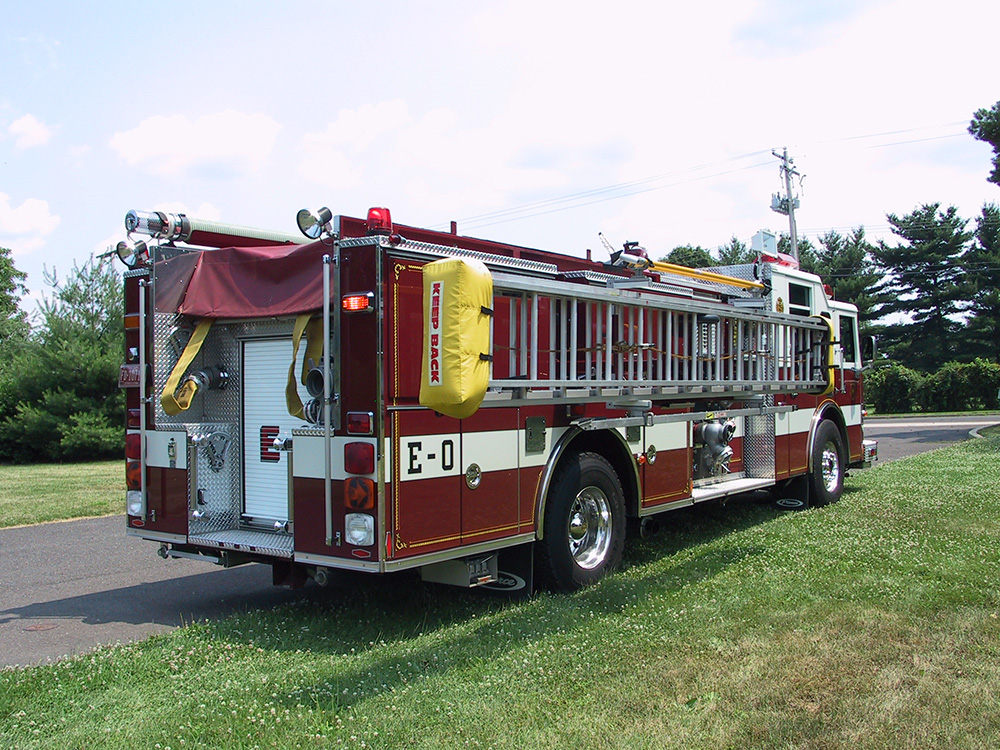

    – Lowers ladders from the stored position to a convenient height for safe & easy retrieval, reducing risk of strains and other common injuries.

    – Powered by a new & improved, self-contained hydraulic piston with a maximum load of 500 lb.

    – Boom lowers ladders away from the side body, so that access to side compartments remains unrestricted.

    – Boom is solid, heavy-duty yet lightweight powder-coated cast aluminum.

    – NFPA compliant. A Flashing Light Kit provides a visual signal when the system is out of the stored position. An optional Audio/Visual Alarm is also available (see Model AVA).


    An optional stop is available to provide solid “lock-up” against the apparatus body, see Model HLAS-OS.

    To mount one or two hard sleeves to the unit, see Models HLAS-HS-1KIT and HLAS-HS-2KIT.

    To mount pike poles, folding ladders, and other accessories, see Model HLAS-FLB-VM.


    Systems Available:

    Model HLAS-975: Complete System with 9-3/4″ Ladder Combination

    Model HLAS-1200: Complete System with 12″ Ladder Combination


    Ordering Your HLAS System:

    When ordering, please be prepared with the following information:

    1.) Manufacturer of ladders to be mounted

    2.) Model numbers of ladders to be mounted

    3.) Length of each ladder

    4.) Fire department name, city, and state (for unit registration)
