Outside Arm Ladder System w/ 9-3/4" Ladder Combination
Outside Arm Ladder System w/ 9-3/4" Ladder Combination OALS Ladder Up Group OALS Ladder Angled Group OALS Ladder Down Group

Outside Arm Ladder System (OALS)

Documents

Documents

  • Description

    Features:

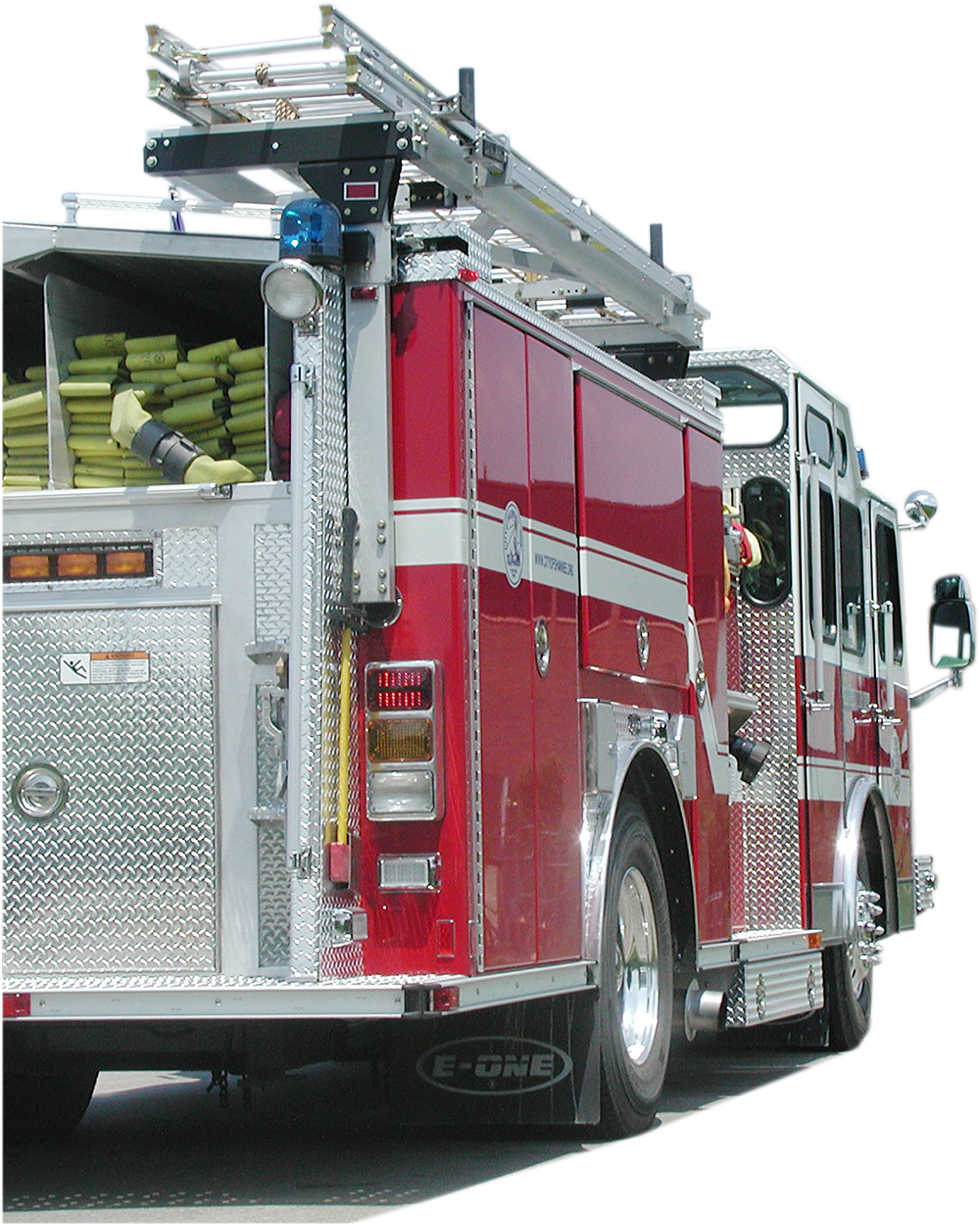

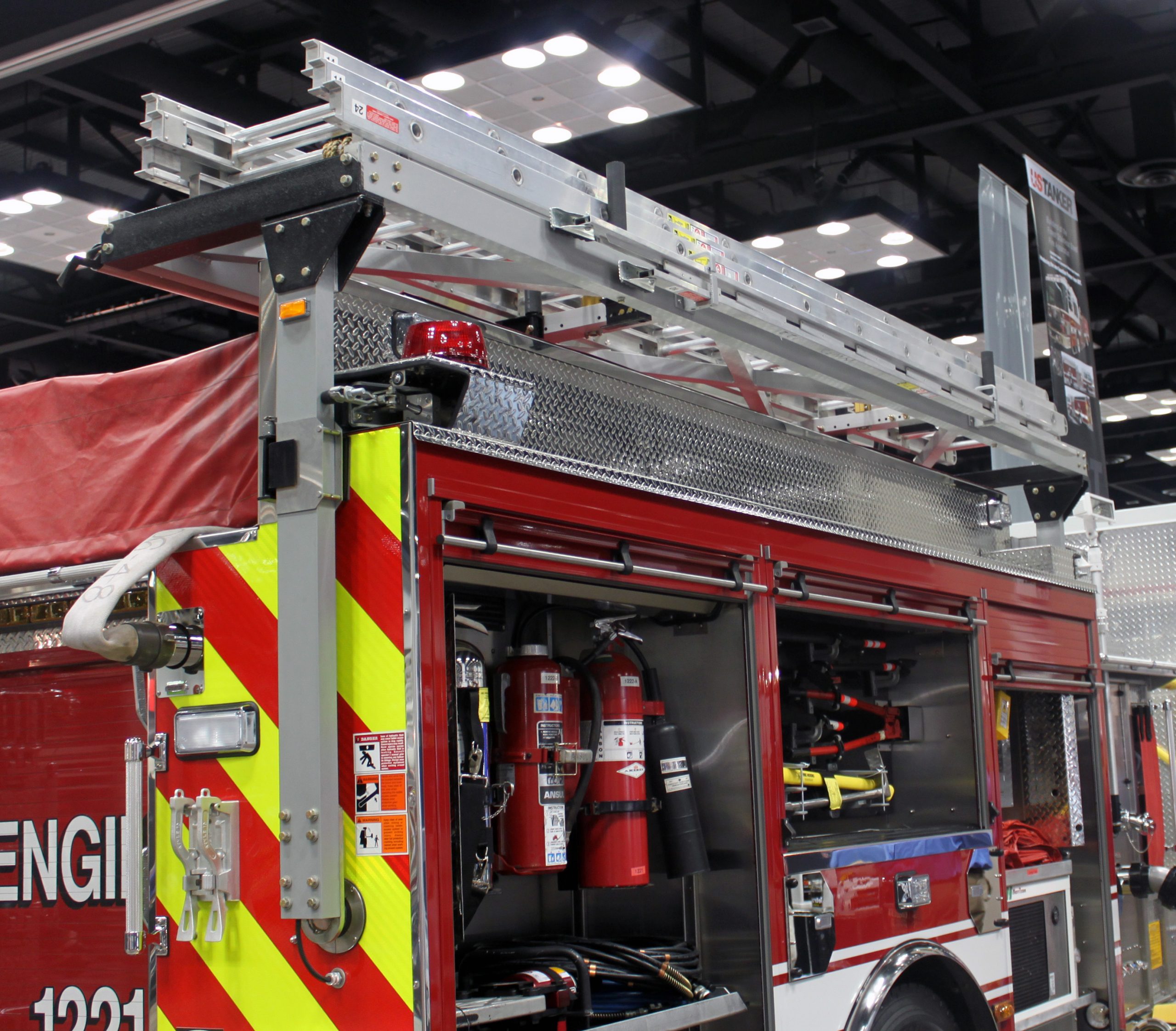

    – Stores ladders horizontally over top of the apparatus, leaving more space for compartments below.

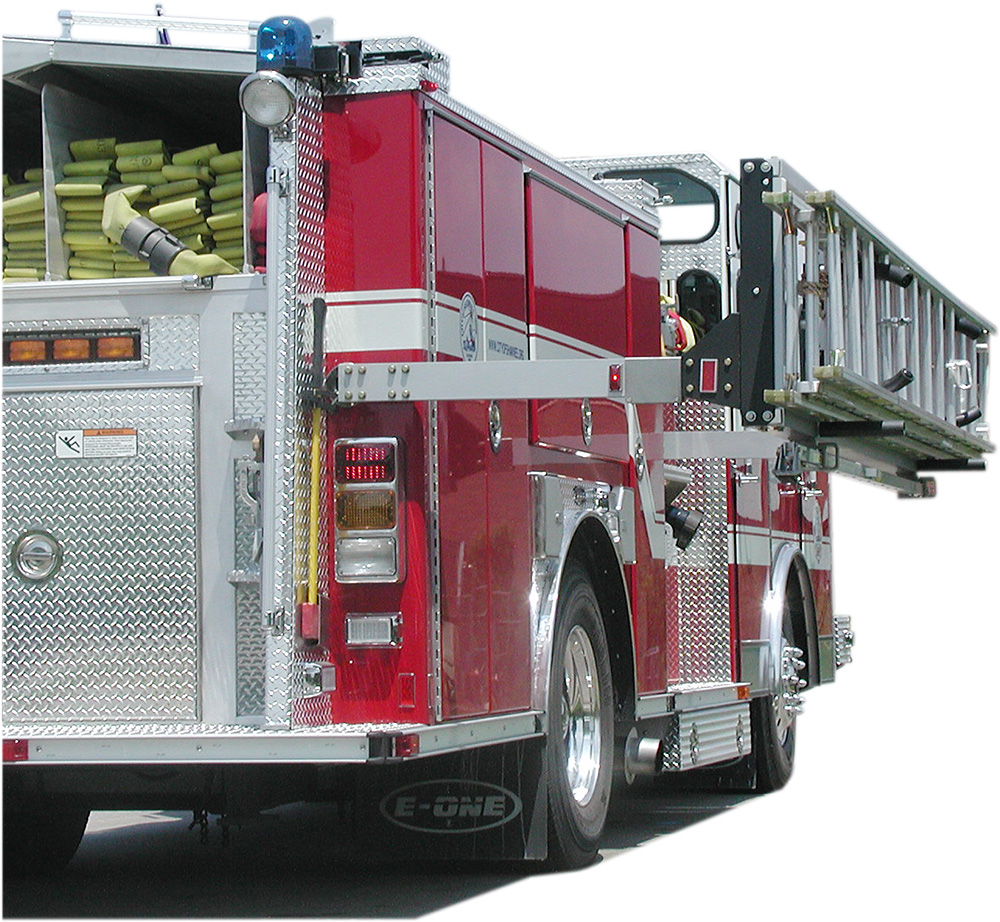

    – Lowers ladders from the stored position to a convenient height for safe & easy retrieval, reducing risk of strains and other common injuries.

    – Powered by a new & improved, dual stroke 8″ hydraulic cylinders that raise and lower faster than ever before. Maximum load of 300 lb.

    – Heavy-duty, 2″ x 4″ powder-coated cast aluminum booms connect hydraulic cylinders to the ladder rack.

    – Booms mount to end walls of apparatus cabinetry, allowing for extra storage space.

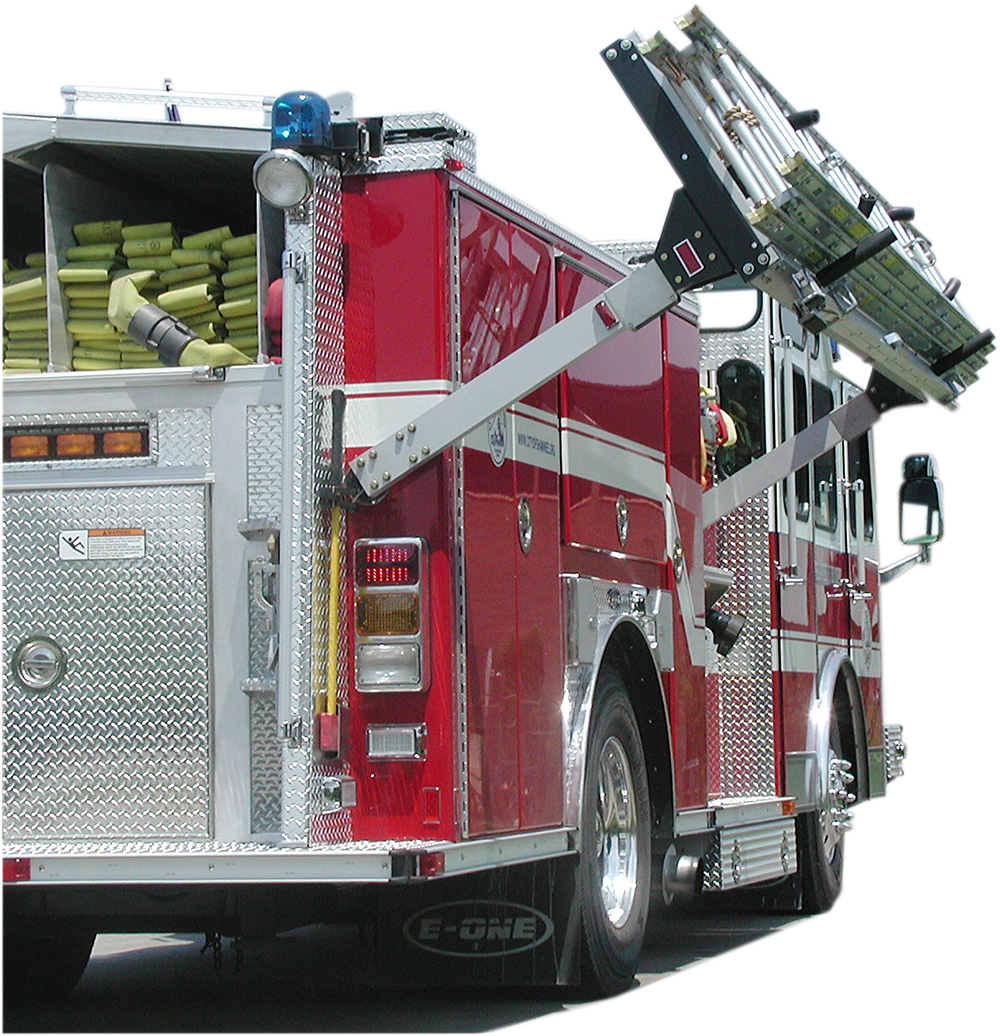

    – Booms lower ladders away from the side body, so that access to side compartments remains unrestricted.

    – Hydraulically-powered. Power unit set at 1500 PSI up and 2500 PSI down. Control and electrical panels are included.

    – For additional safety, pneumatic power clamps automatically lock booms in place when returned to the fully-stored position.

    – NFPA compliant. A Flashing Light Kit provides a visual signal when the system is out of the stored position. An optional Audio/Visual Alarm is also available (see Model AVA).

    OALS racks can be custom made to your specifications. Please call us at 1-800-711-FIRE for more information.



    Systems Available:

    Model OALS: Basic System – Less Rack

    Model OALS-775: Complete System with 7-3/4″ Ladder Combination

    Model OALS-975: Complete System with 9-3/4″ Ladder Combination

    Model OALS-1200: Complete System with 12″ Ladder Combination



    Ordering Your OALS System:

    When ordering, please be prepared with the following information:

    1.) Manufacturer of ladders to be mounted

    2.) Model numbers of ladders to be mounted

    3.) Length of each ladder

    4.) Fire department name, city, and state (for unit registration)
