Horizontal Portable Tank System (HPTS)



Share With:
  • Description

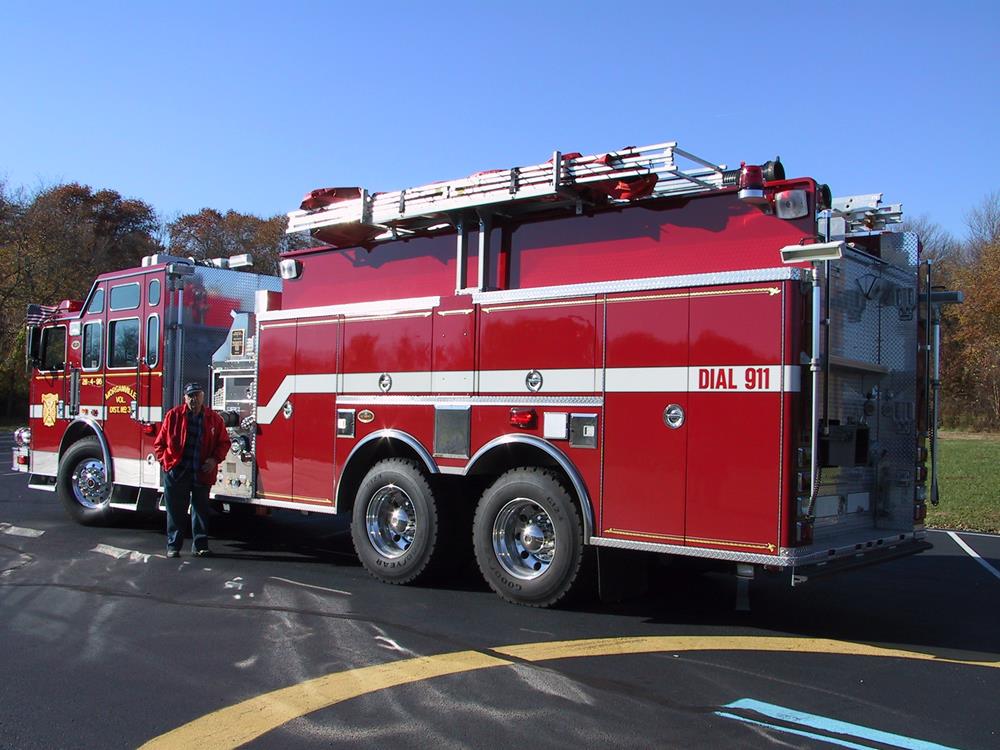

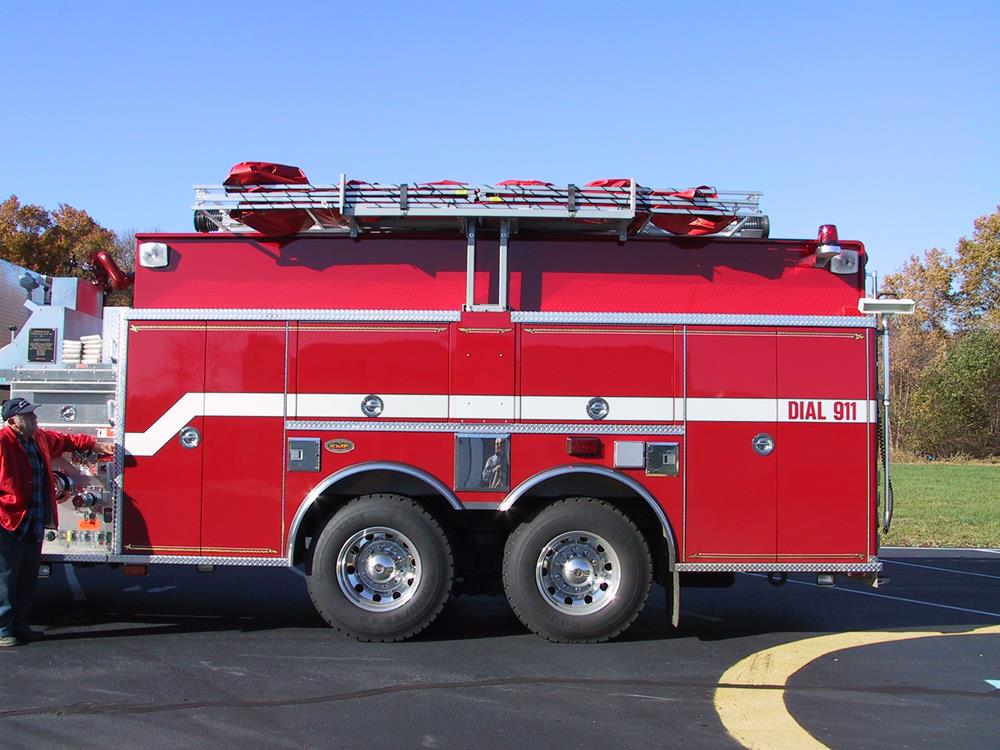

    – Stores portable tank horizontally over top of the apparatus, leaving more space for compartments below.

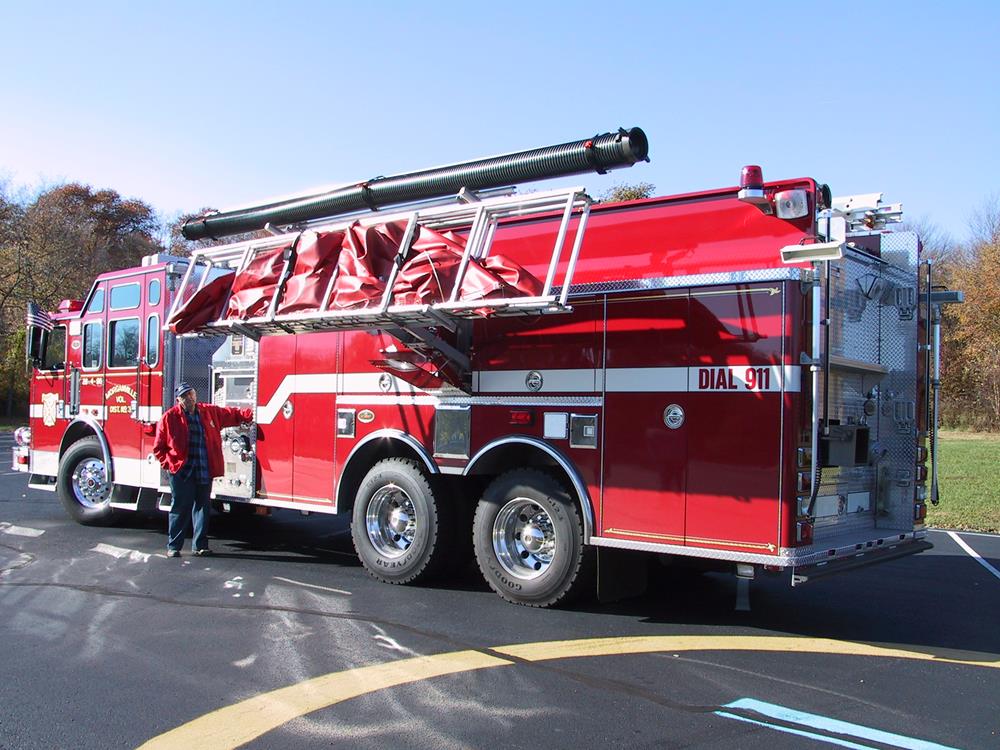

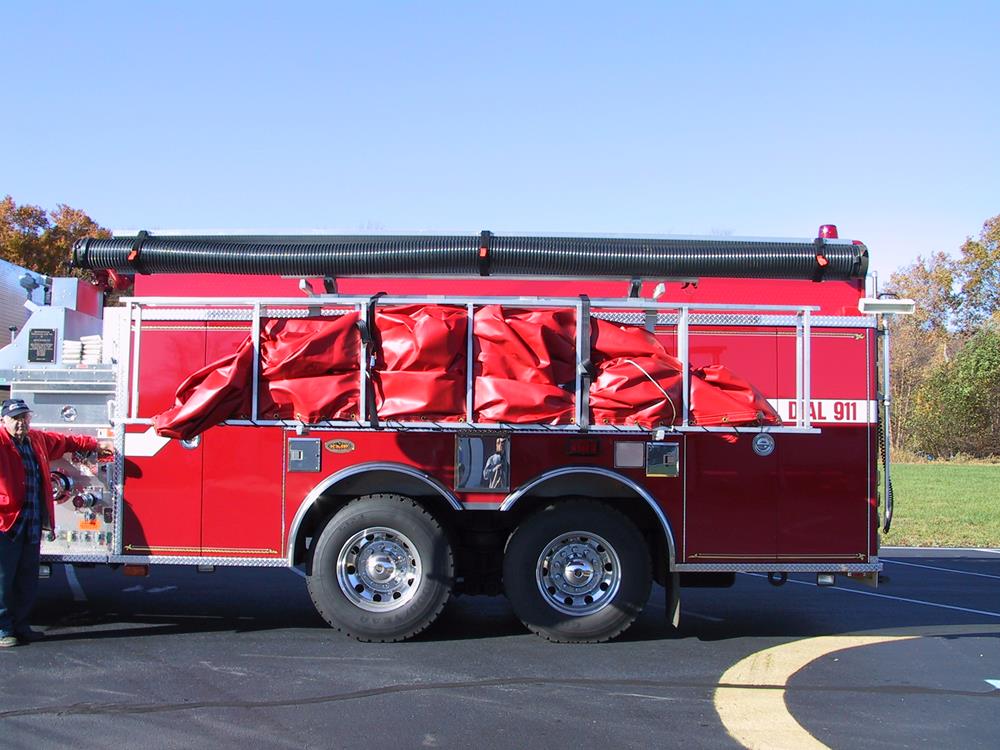

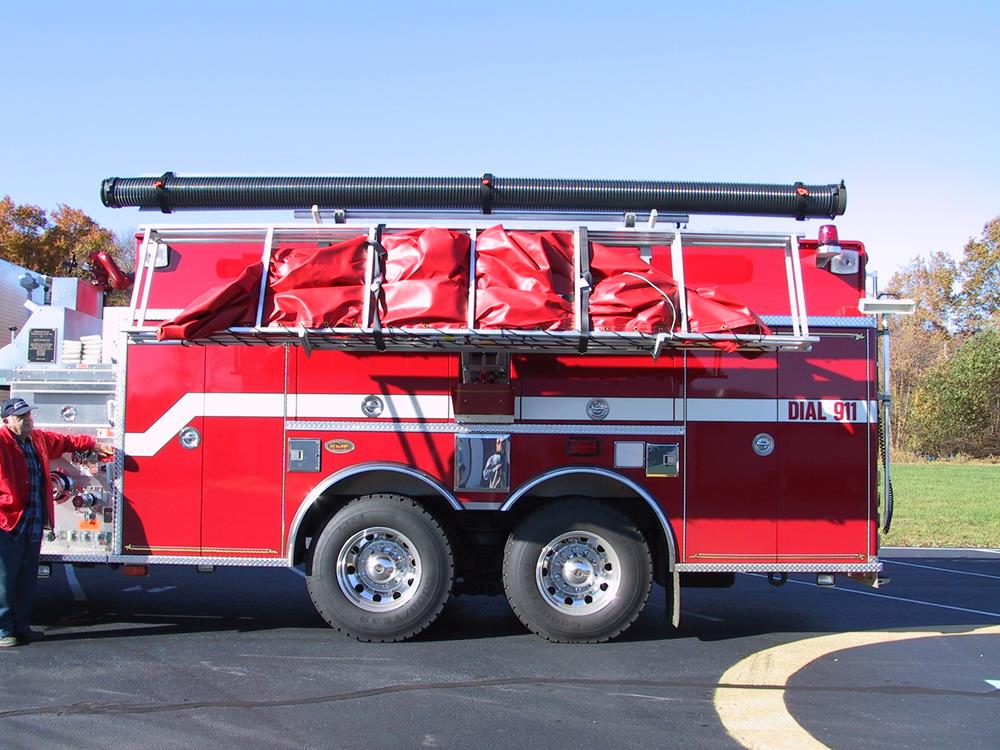

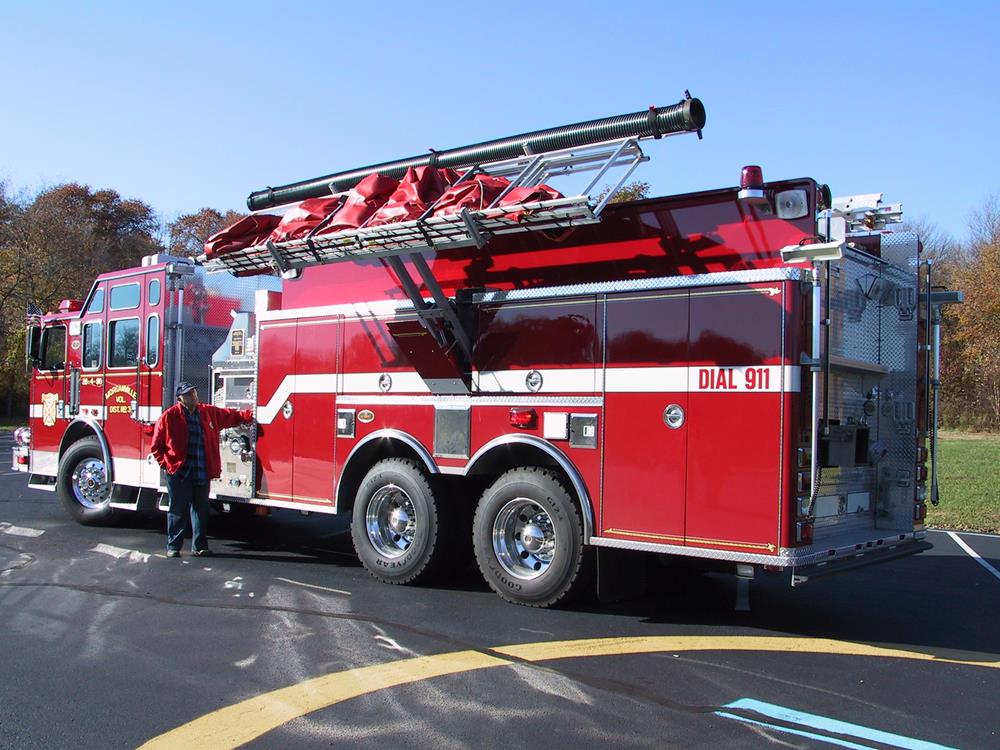

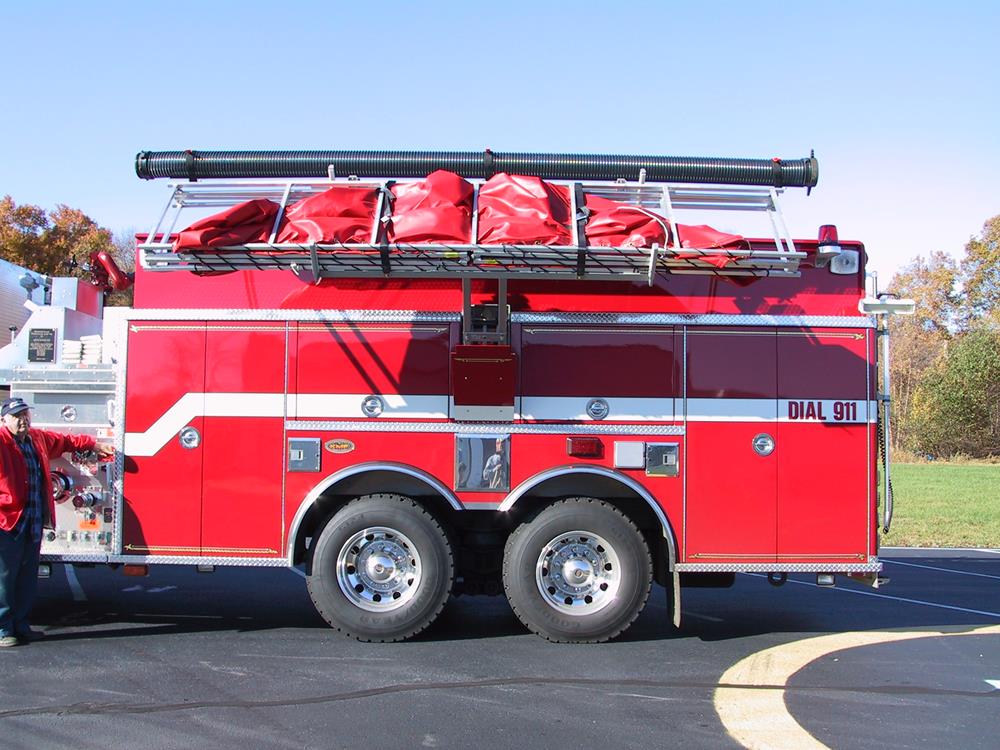

    – Lowers portable tank from the stored position to a convenient height for safe & easy retrieval, reducing risk of strains and other common injuries.

    – Powered by a new & improved, self-contained hydraulic piston with a maximum load of 500 lb.

    – Boom lowers portable tank away from the side body, so that access to side compartments remains unrestricted.

    – Boom is solid, heavy-duty yet lightweight powder-coated cast aluminum.

    – NFPA compliant. A Flashing Light Kit provides a visual signal when the system is out of the stored position. An optional Audio/Visual Alarm is also available (see Model AVA).


    An optional stop is available to provide solid “lock-up” against the apparatus body, see Model HLAS-OS.

    To mount one or two hard sleeves to the unit, see Models HLAS-HS-1KIT and HLAS-HS-2KIT.

    To mount pike poles, folding ladders, and other accessories, see Model HLAS-FLB-VM.
