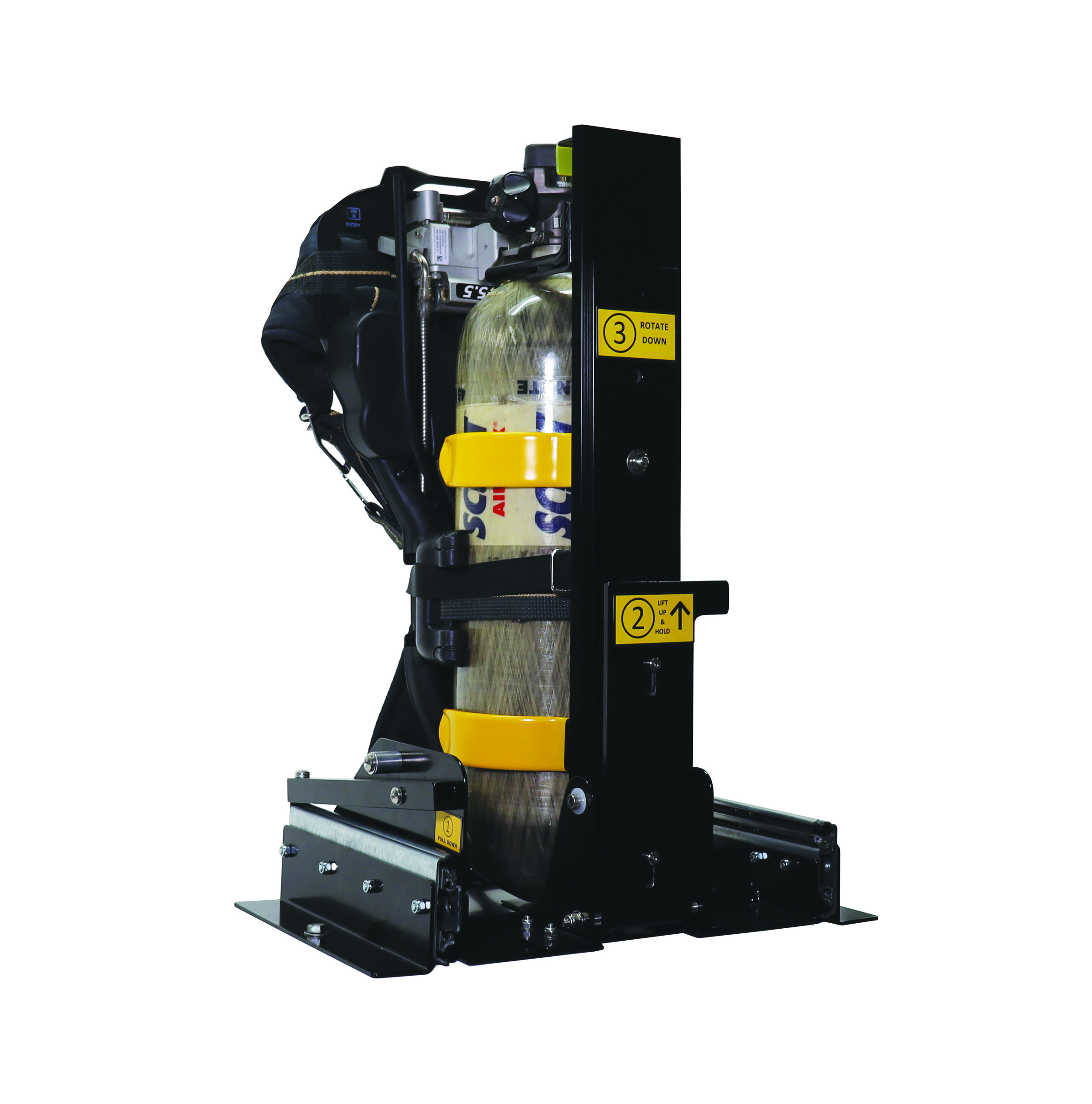

QUIC-SWING Flip-Down 180° SCBA Bracket


Models: QS-FD-180-5, QS-FD-180-6, QS-FD-180-LB Categories: , , Tags: , ,
Share With:
  • Description

    Moving SCBAs out of the crew cab? Don compartment stored SCBAs from a comfortable standing position.



    -Bracket slides out over the lip of the compartment, then flips end over end to a convenient height for quick, safe, and easy donning from a comfortable standing position

    -Great for storing first attack SCBAs outside of the crew cab and reducing firefighter exposure to harmful carcinogens

    -Storing SCBA facing the rear of the compartment helps keep straps and hoses from being caught or damaged by the compartment door

    -Two powerful locks, a tray lock and a backplate lock, hold the assembly firmly in place until needed. Spring clips and a positive holding strap keeps SCBA secure.

    -Minimizes straining and injury caused by reaching upwards for a heavy SCBA

    -Allows for easier inspection of SCBA and harness



    -For compartments with 24-1/2″ H x 12″ D minimum usable space

    -Lowers SCBA valve 14-1/2″ from compartment shelf

    -Extends SCBA harness approx. 21″ from the apparatus sidewall


    Models Available:

    30-Min. 4500 PSI Cylinder: Model QS-FD-180-5

    45-Min. 4500 PSI Cylinder: Model QS-FD-180-6

    Unit Less SCBA Bracket: Model QS-FD-180-LB


    30-Min. 5500 PSI Cylinder: Models QS-FD-180-LB + SC-50-H-5-SFPHS

    45-Min. 5500 PSI Cylinder: Models QS-FD-180-LB + SC-50-H-6-SFPHS

    60-Min. Cylinders: Models QS-FD-180-LB + UH-7-60-2-PHS + NEF
