QUIC-SLIDE Swing-Down SCBA Bracket Extended
QUIC-SLIDE Swing-Down SCBA Bracket Extended

QUIC-SLIDE Swing-Down SCBA Bracket

Documents

Documents

Model: QSSD-5, QSSD-6, QSSD-LB Categories: , , Tags: , ,
  • Description

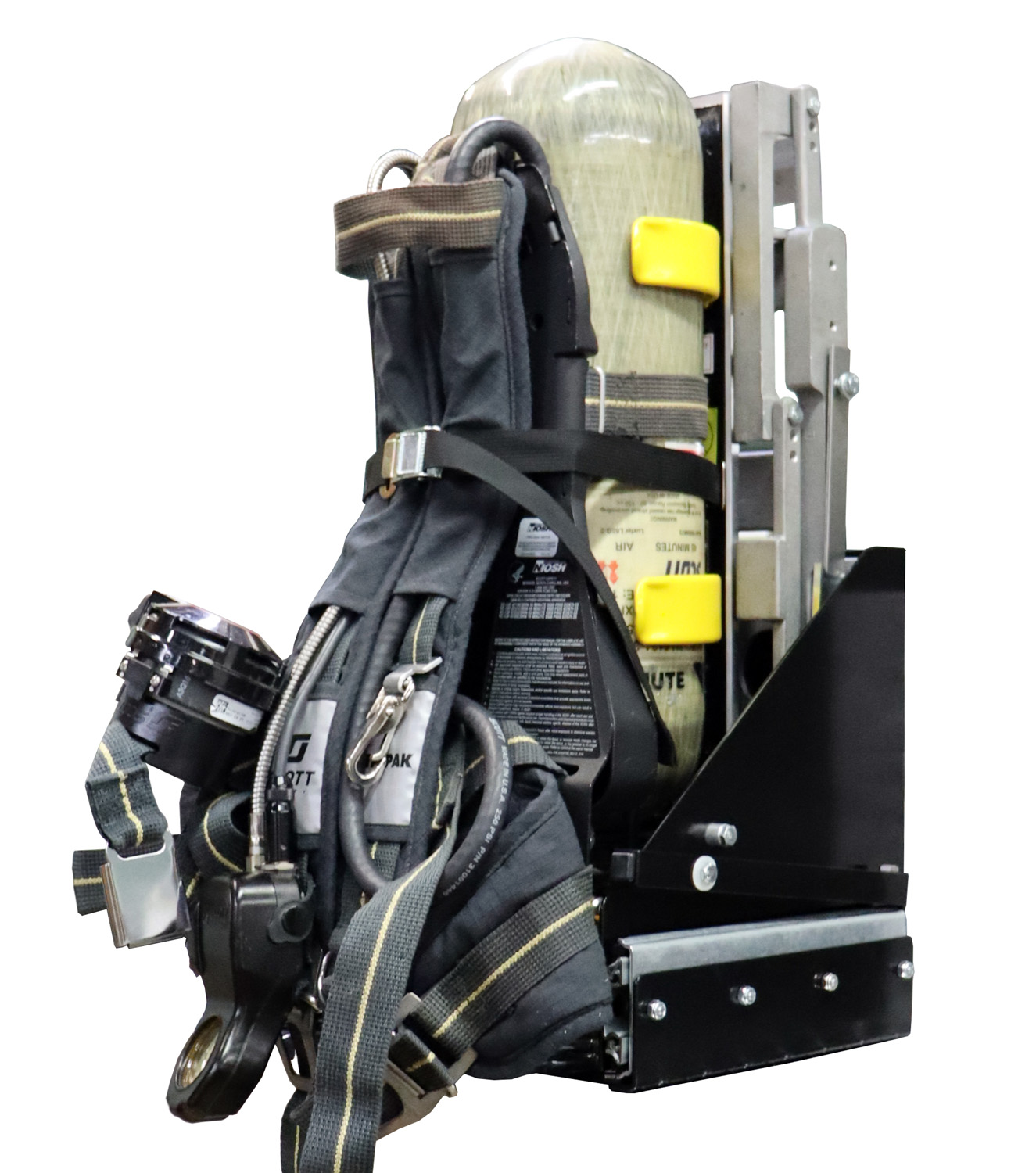

    Moving SCBAs out of the crew cab? Comfortably don compartment stored SCBAs from your choice of two different heights.



    Features:

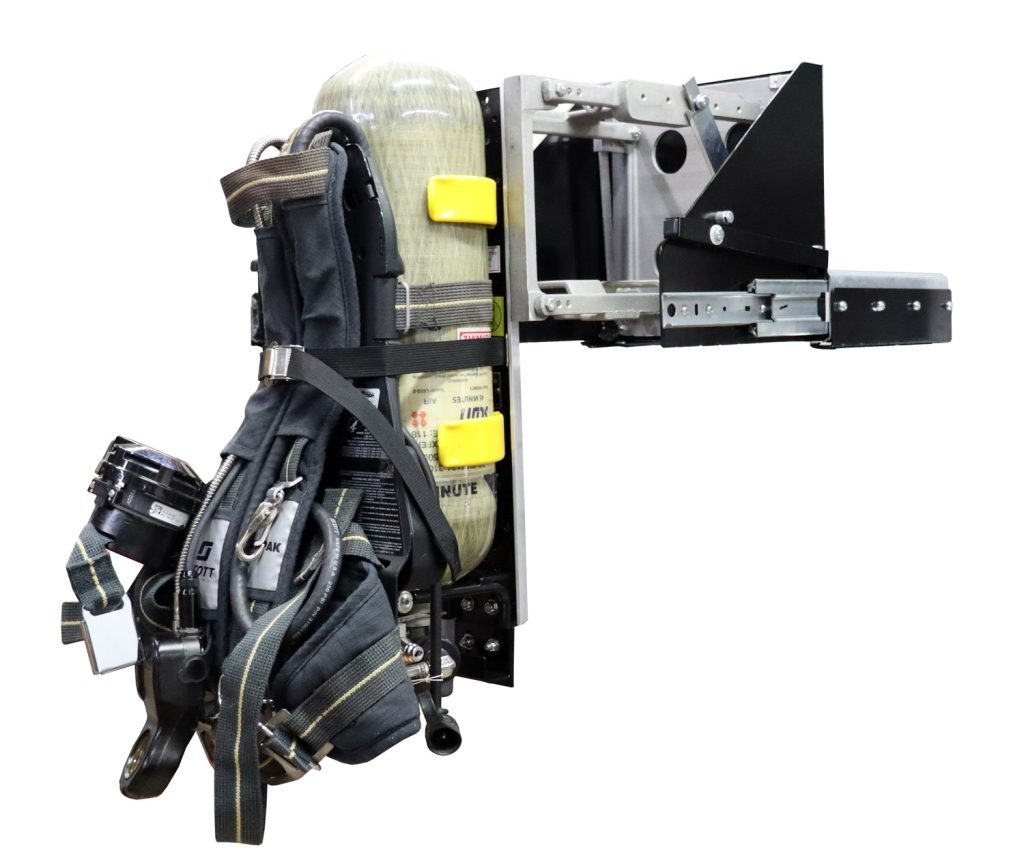

    -Bracket slides out over the lip of the compartment, then swings down to a convenient height for quick, safe, and easy donning from a comfortable standing position

    -Offers flexible height for different personnel—firefighter can choose to deploy swing-down for lower access, or simply slide out and don from the higher stored position

    -Great for storing first attack SCBAs outside of the crew cab and reducing firefighter exposure to harmful carcinogens without sacrificing speed

    -Three powerful locks, two tray locks and a backplate lock, hold the assembly firmly in place until needed. Spring clips and a positive holding strap keeps SCBA secure.

    -Minimizes straining and injury caused by reaching upwards for a heavy SCBA

    -Allows for easier inspection of SCBA and harness



    Specs:

    -For compartments with 24-1/2″ H x 12″ D minimum usable space

    -Lowers SCBA valve 14″ from compartment shelf

    -Extends SCBA harness approx. 21″ from the apparatus sidewall





    Models Available:

    30-Min. 4500 PSI Cylinder: Model QSSD-5

    45-Min. 4500 PSI Cylinder: Model QSSD-6

    Unit Less SCBA Bracket: Model QSSD-LB



    30-Min. 5500 PSI Cylinder: Models QSSD-LB + SC-50-H-5-SFPHS

    45-Min. 5500 PSI Cylinder: Models QSSD-LB + SC-50-H-6-SFPHS

    60-Min. Cylinders: Models QSSD-LB + UH-7-60-2-PHS + NEF
