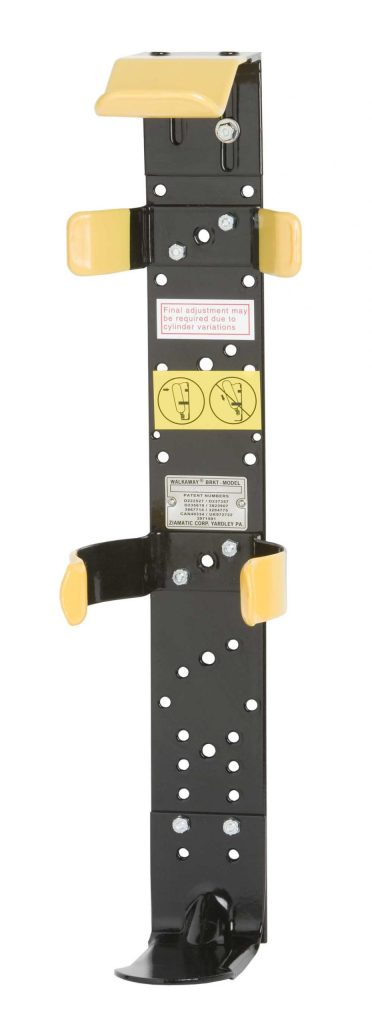

WALKAWAY Bracket for 5500 PSI Cylinders

Documents

  • Description

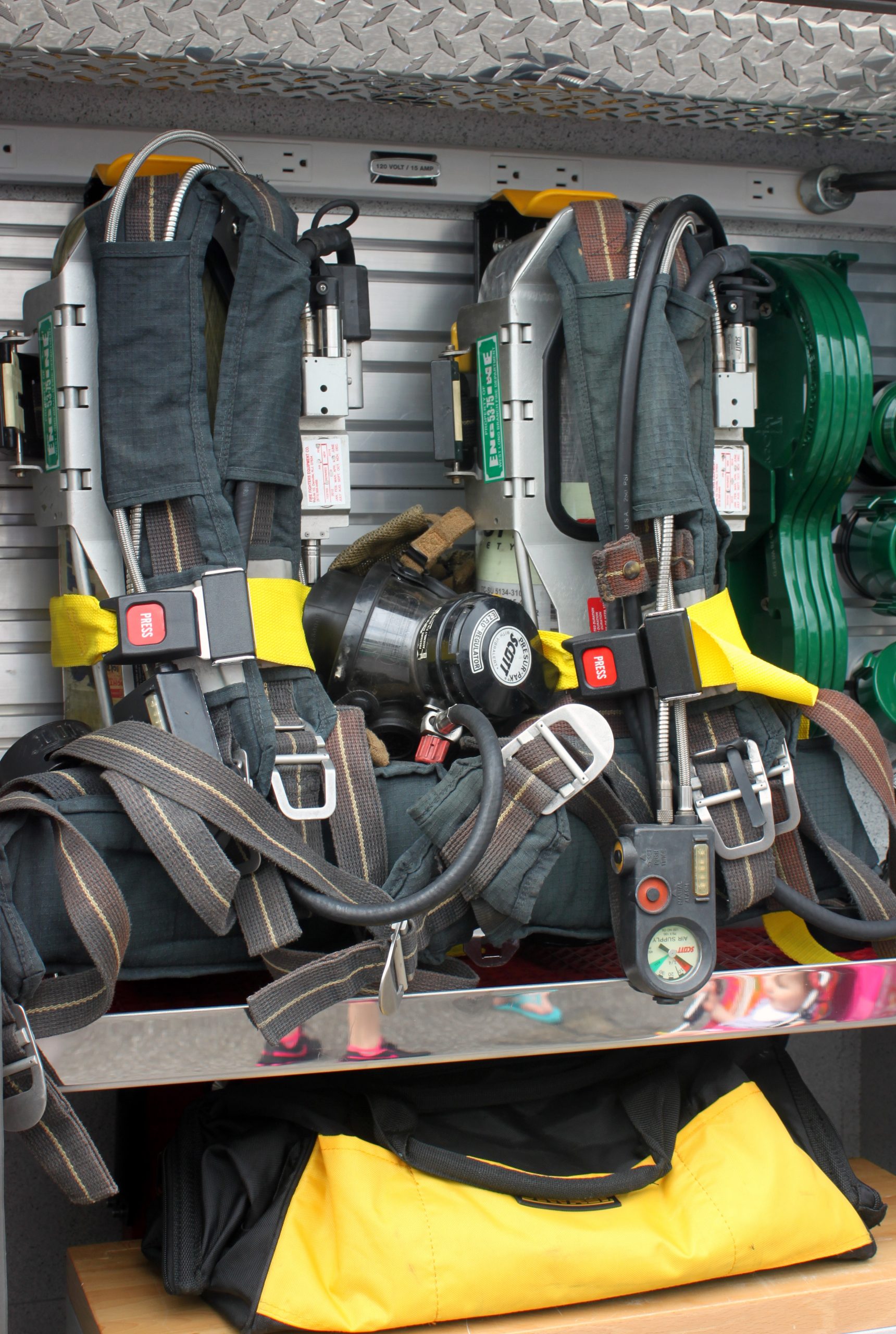

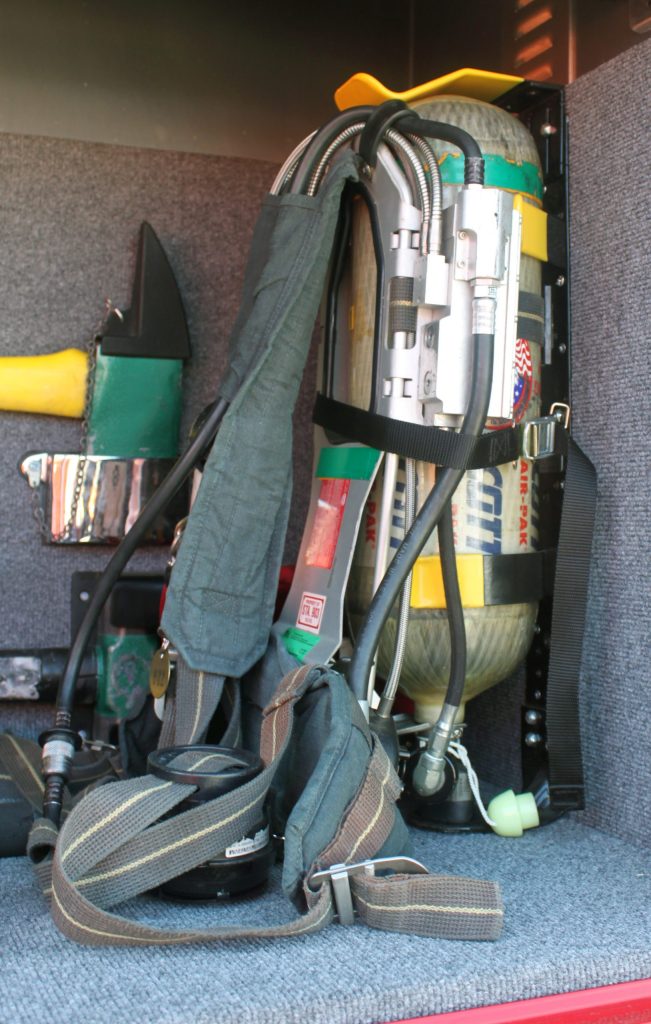

    This WALKAWAY Spring Clip Bracket is ideal for use with 5500 PSI air packs and cylinders.



    Features:

    – A spring clip on the bottom half of the backplate and a seat on the upper half allow for adequate clearance around the unique harness and hoses.

    – Non-mar, double coated top clip provides additional support for the upper half of the air cylinder.

    – Simple, easy, and quick. To stow, simply place the valve on the footplate and push the cylinder into the clips. To remove, just pull the cylinder free



    Note: Per NFPA regulations, these brackets can only be used in non-crew areas/the station unless the apparatus was manufactured prior to 2003.



    Models Available:

    Model SC-50-H-5-SF: For 5.5″ diameter 4500 PSI and 30 minute 5500 PSI cylinders

    Model SC-50-H-6-SF: For 6.75″ diameter 4500 PSI and 45 minute 5500 PSI cylinders

    Model SC-50-H-7-SF: For 7″ to 7.4″ diameter cylinders

    Model SC-50-H-5-SFPHS: For 5.5″ diameter 4500 PSI and 30 minute 5500 PSI cylinders. Includes Positive Holding Strap.

    Model SC-50-H-6-SFPHS: For 6.75″ diameter 4500 PSI and 45 minute 5500 PSI cylinders. Includes Positive Holding Strap.

    Model SC-50-H-7-SFPHS: For 7″to 7.4″ diameter cylinders. Includes Positive Holding Strap.

    Model SC50-H-7-NEFPHS: For 7″ to 7.4″ diameter cylinders. Includes Long Footplate and Positive Holding Strap.
