Oxygen Tank System – Motor on Right


Model: QR-OTSR-U Categories: , , Tags: , ,
Share With:
  • Description

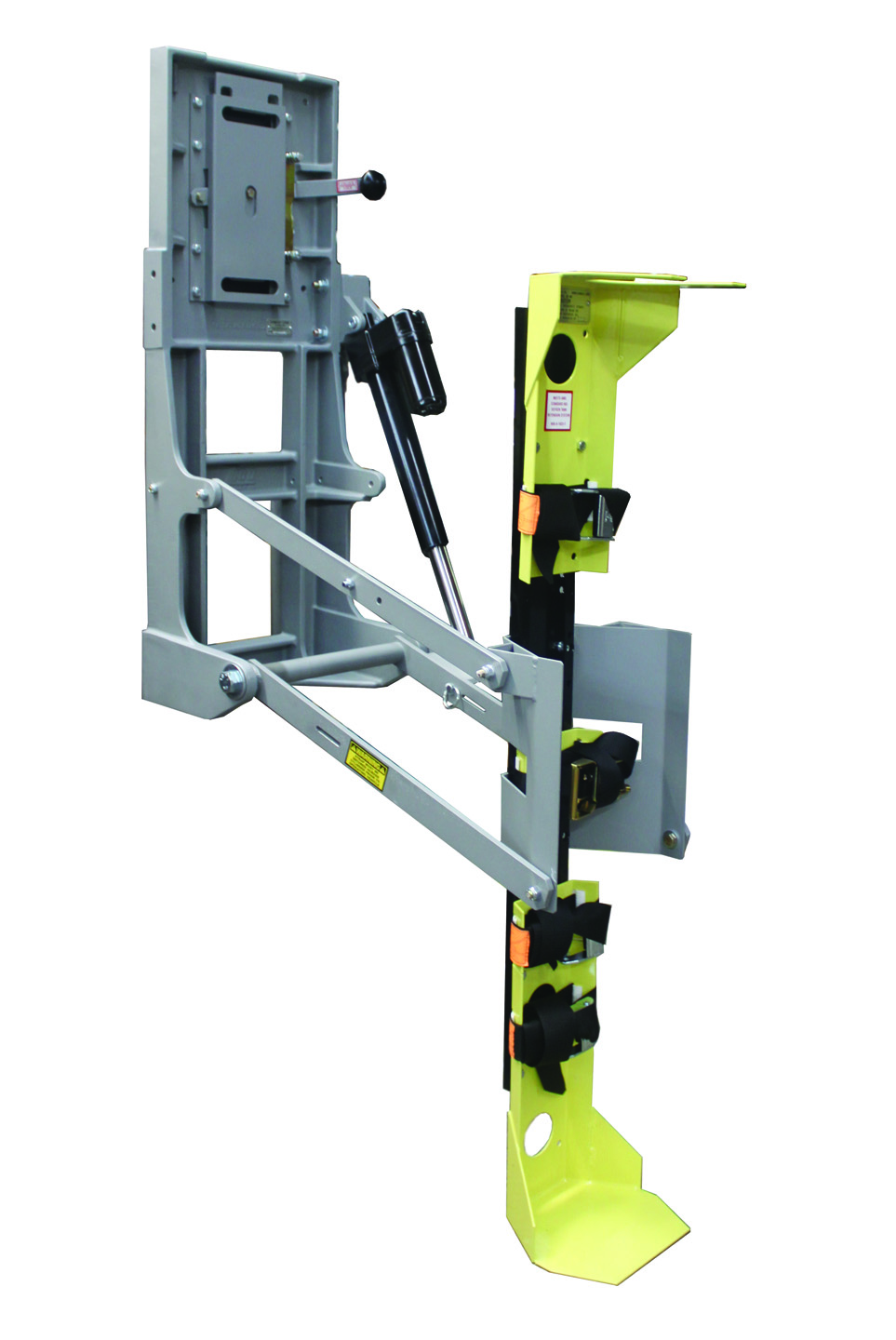

    Lifts and lowers an apparatus-mounted gas cylinder for quick and easy replacement, substantially reducing risk of injury to personnel.

    System is powered by a single electric actuator with a maximum lifting weight of 205 lb. This actuator meets the UL-1500 standard for ignition protection, requires a 12 VDC with 30 amp circuit, and is operated via a standard toggle switch (located on same side as motor). An optional hand-held switch is also available. The actuator is backdriving, preventing an extended system from holding the full weight of the apparatus if air suspension is lowered.

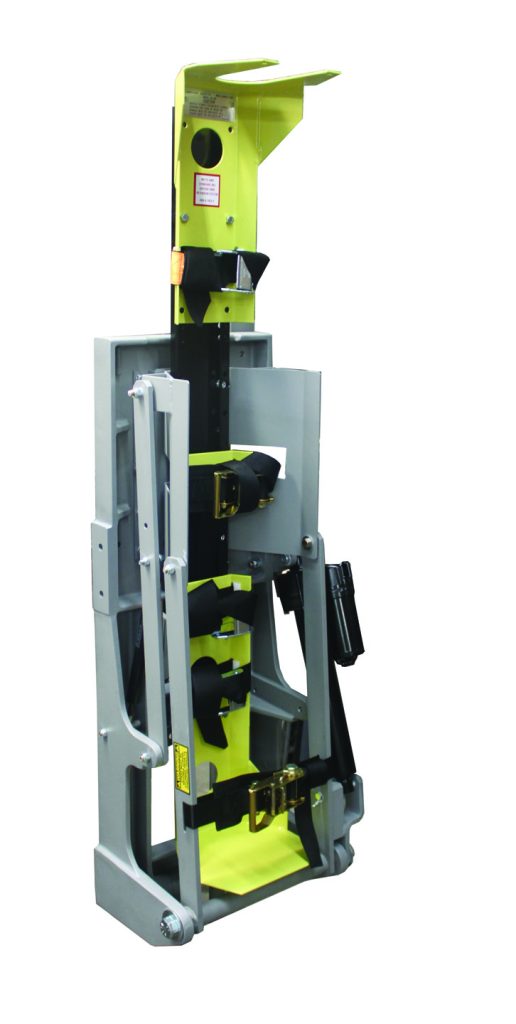

    A locking safety latch secures the system when not in use.

    Systems come equipped with appropriate cylinder bracket, two standard straps, and two ratcheting straps.

    Complies with SAE-J3043, AMD Standard 003 for oxygen tank retention systems, and GSA KKK specification when used as recommended. Complies with OSHA and insurance safety regulations.
