QR-SA With Bracket
QR-SA With Bracket QR-SA Application QR-SA

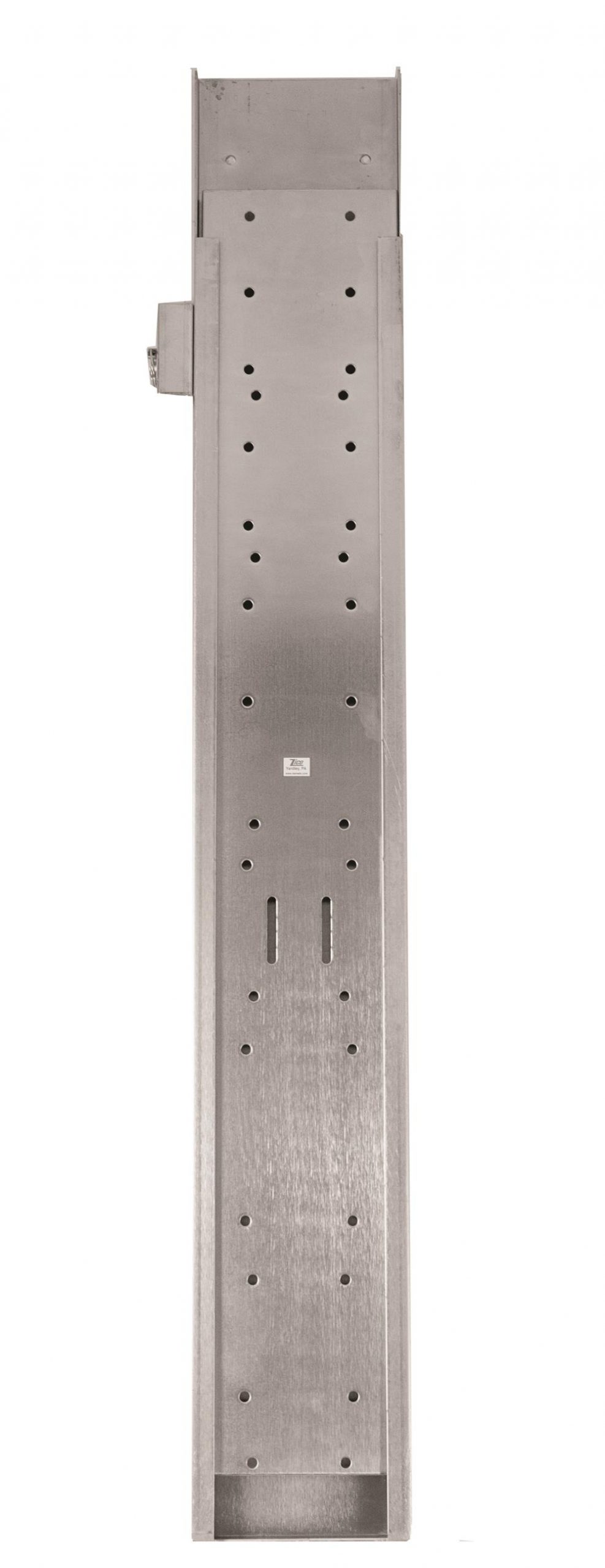

Slide Assembly

Documents

Documents

  • Description

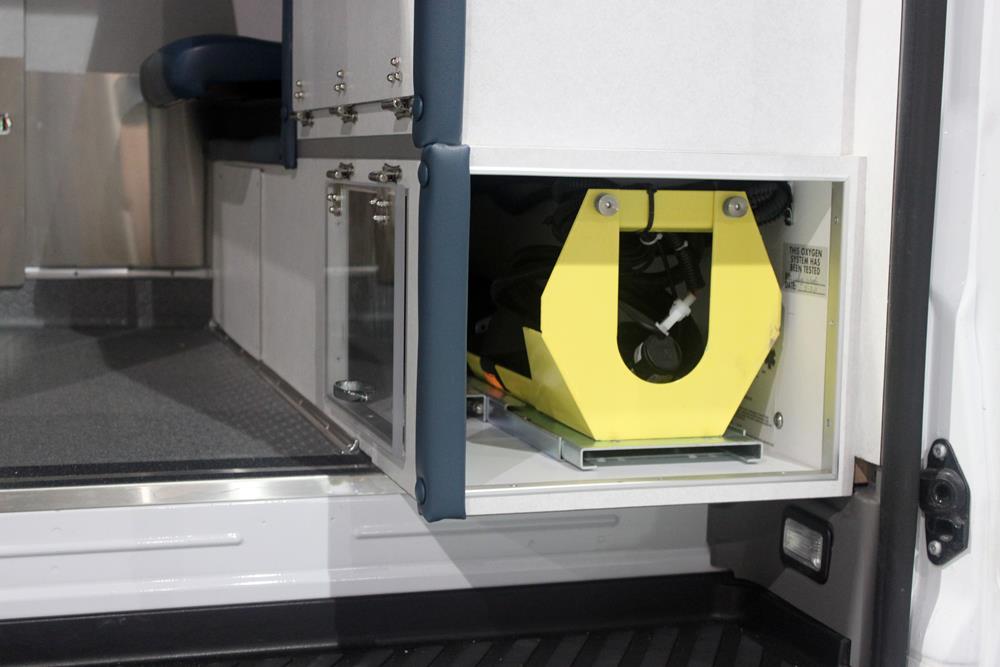

    Ideal for use under bench or squad seats in ambulance and rescue vehicles. The fast-acting latch system allows the cylinder to be pulled partially out for recharging or all the way out for replacement. The 2-part assembly is made of 12-gauge zinc-plated steel and measures 50″ long or 9-1/4″ wide x 1-1/8″ high.

    For use with model QR-M-2 and QR-MV gas cylinder brackets (sold separately).

    Complies with SAE-J3043, AMD Standard 003 for oxygen tank retention systems, and GSA KKK specification when used as recommended. Complies with OSHA and insurance safety regulations.
