Vehicle Cooling Units

Documents

Models: VCU-36, VCU-36-A, VCU-36-LF, VCU-72, VCU-72-LF, VCU-36-NH, VCU-36-E Categories: ,

Ziamatic’s new Vehicle Cooling Units could be the answer to the challenges created by vehicle fires, with 39.5″ and 81″ options available.

Share With:
  • Description

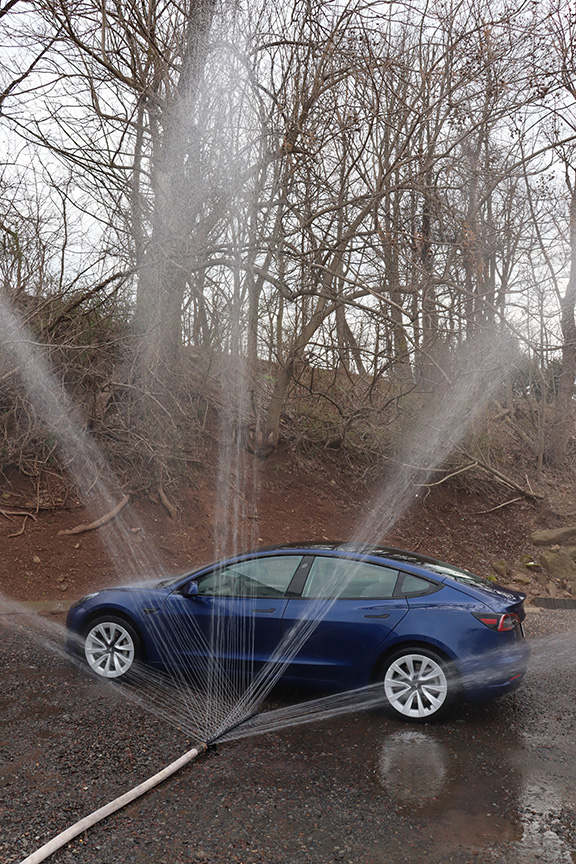

    Fires in electric vehicles often take crews longer to handle than those in vehicles with internal combustion engines.  For fire crews, electrical vehicle batteries are hard to reach, difficult to cool down, and the energy created with thermal runaway can easily re-ignite or spread from cell to cell. Ziamatic’s new Vehicle Cooling Units could be the answer to those challenges, with 39.5″ and 81″ options available.

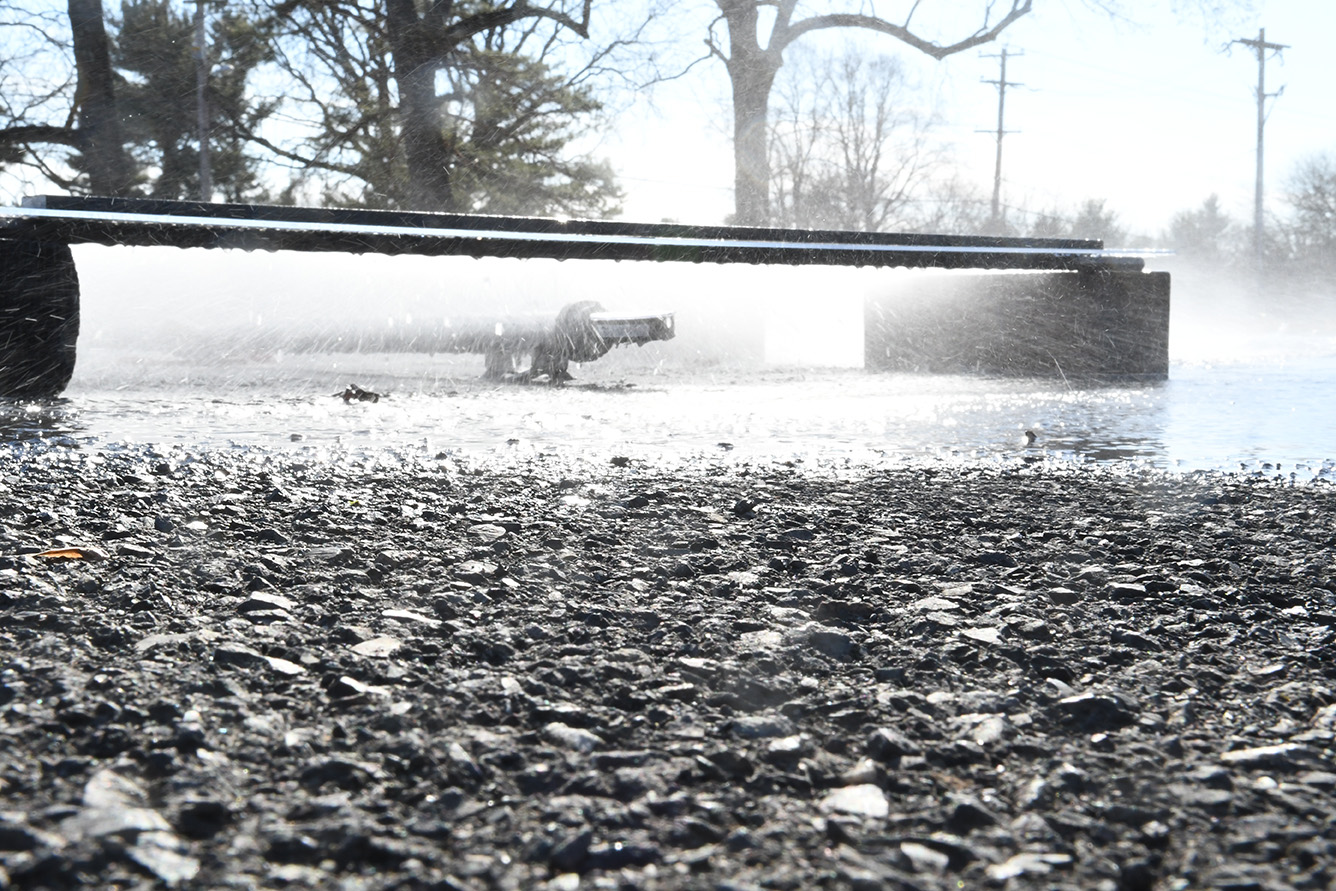

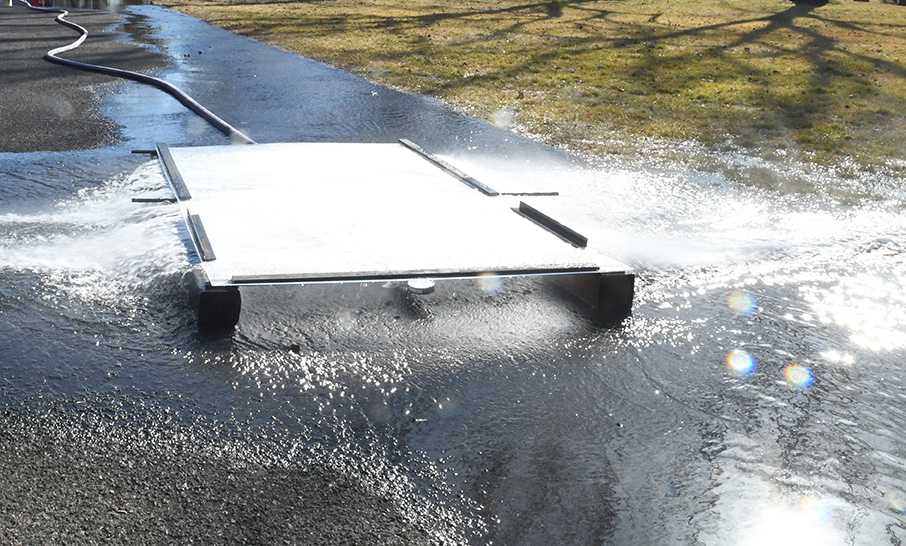

    Our new Vehicle Cooling Units adapt to conventional fire hoses using a NHT 1.5 double female coupling (sold with). They can be slid underneath vehicles with a ground clearance of 5.5 inches and still be very effective. (For international customers, ground clearances may vary depending on the diameter of the outer coupling used). Our VCU-36 unit uses as little as 40 gallons of water per minute. After more than a year of designing and testing, what may be the most cost effective and efficient Vehicle Cooling Units are now available.

    SPECS FOR VEHICLE COOLING UNITS:

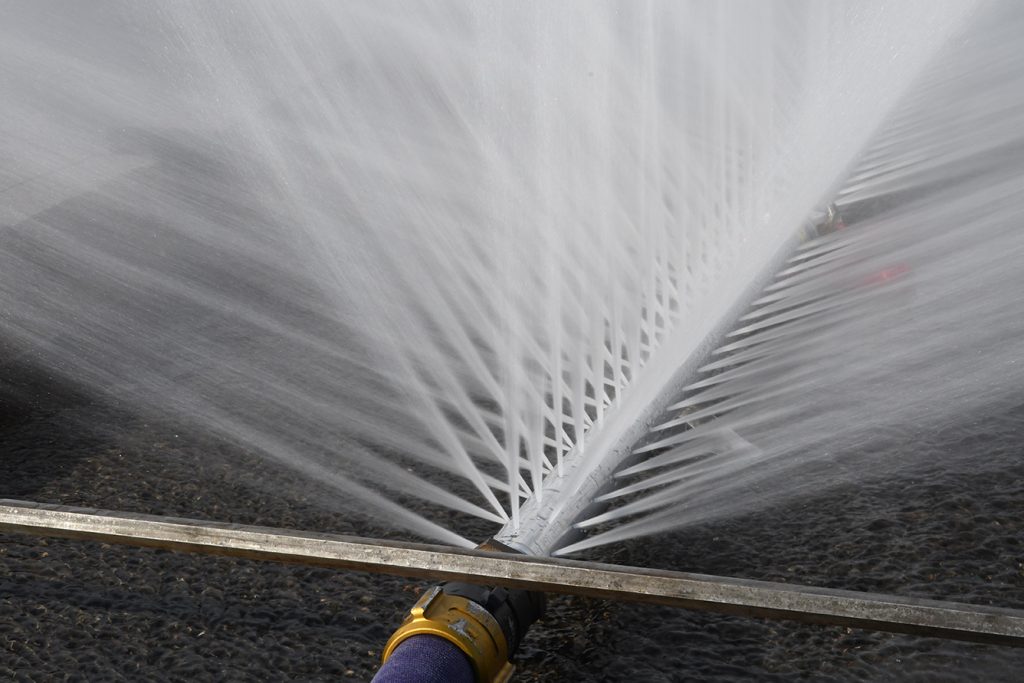

    – 1/16” Diameter Holes
    – 83 Holes per 3 Foot Section

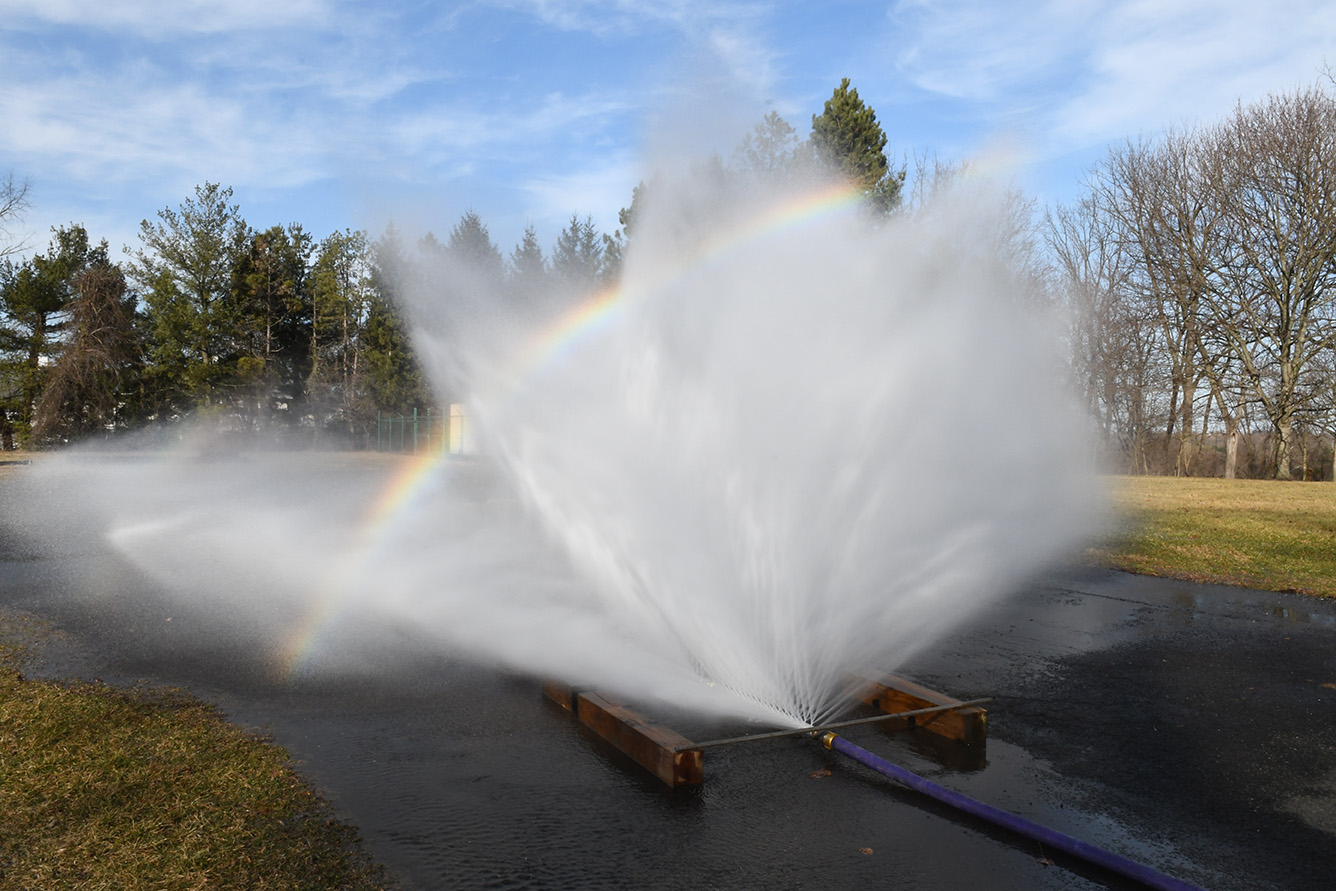

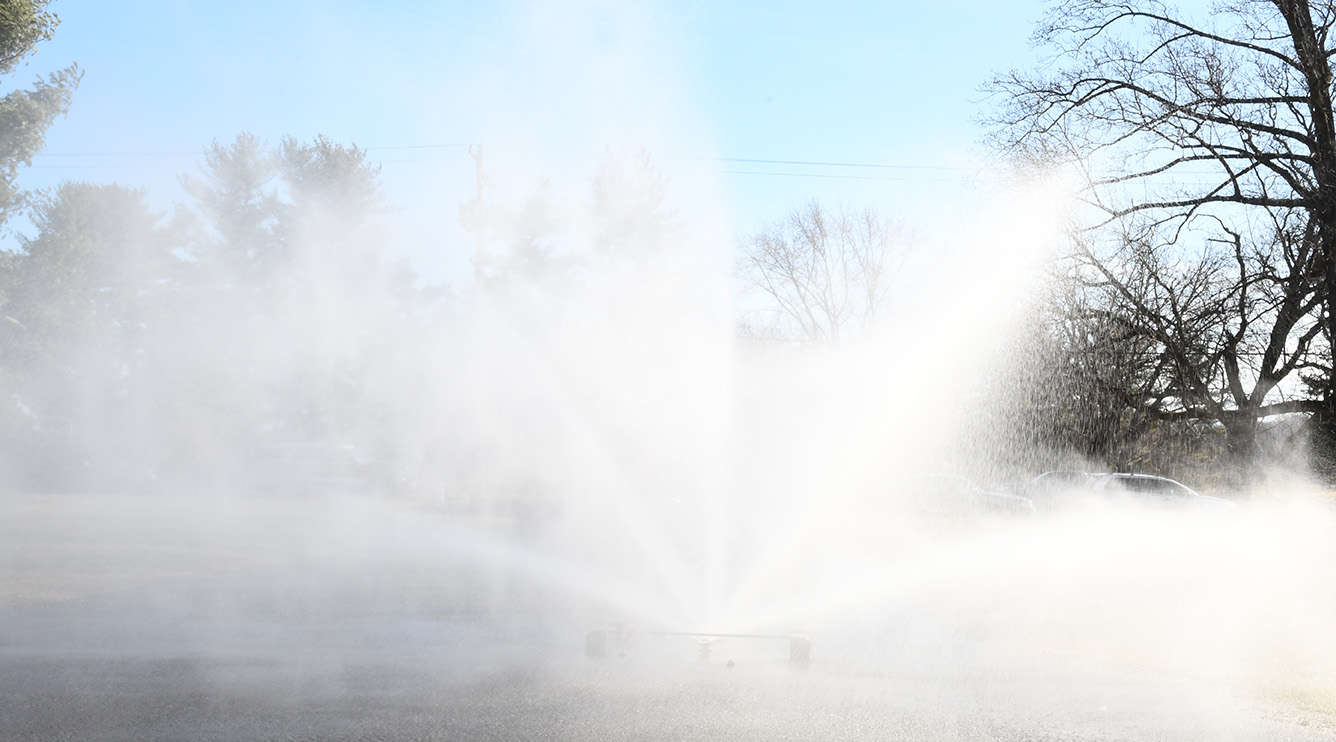

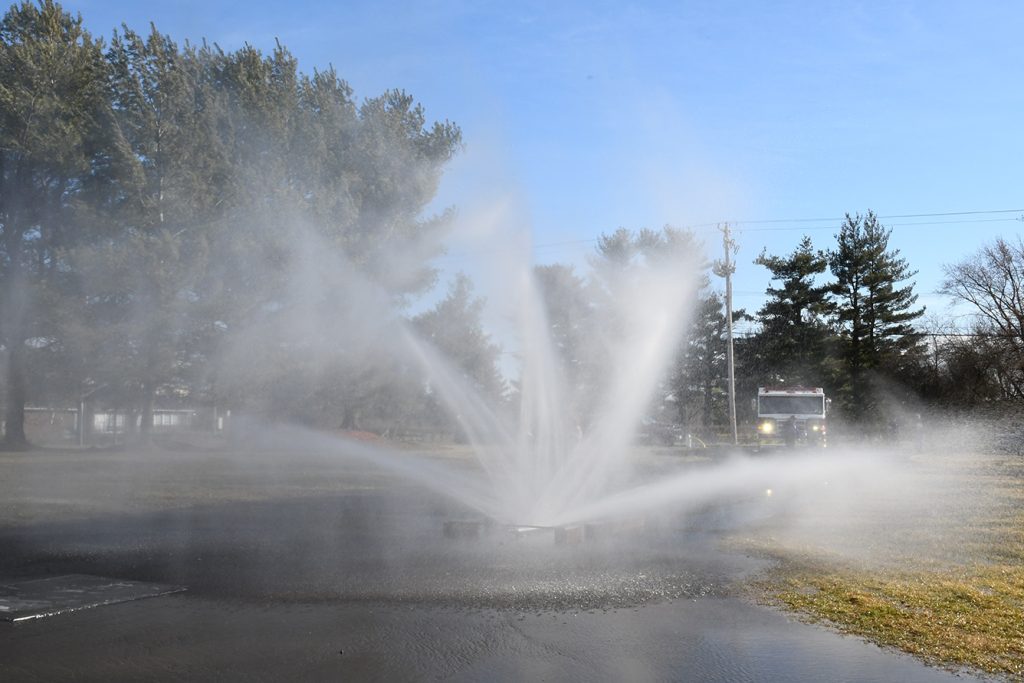

    – 140 Degree Spray Pattern
    – 5.5” Ground Clearance

    MODELS:

    VCU-36
    Includes: (1) Tube, (1) Female Double Swivel Coupling and (1) End Cap
    – 40-60 G.P.M.
    – 4’x8′ Coverage at 5.5″ Vehicle Ground Clearance
    – 83 Spray Holes

    VCU-72
    Includes:
    (2) Tubes, (1) Female Double Swivel Coupling and (1) End Cap, set of (2) Quick Disconnect pieces (Male and Female)
    – 84-119 G.P.M
    – 7’x8′ Coverage at 5.5″ Vehicle Ground Clearance
    – 166 Spray Holes

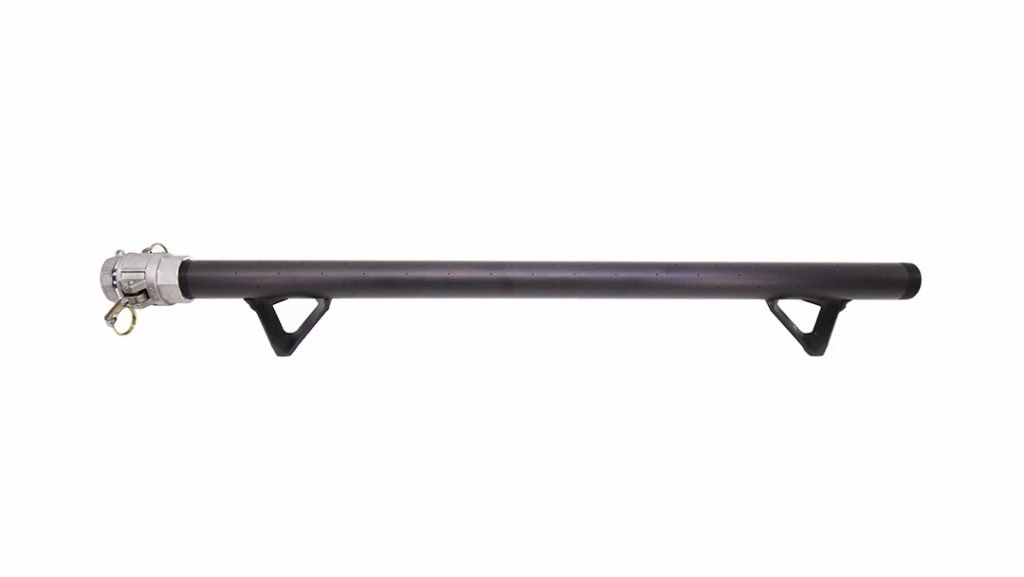

    VCU-36-A
    Includes:
    (1) Tube and (1) Quick Disconnect
    – Vehicle Cooling Unit -36″ with quick disconnect only

    VCU-36-LF
    Vehicle Cooling Unit -36″ less coupling

    VCU-72-LF
    Vehicle Cooling Unit -72″ less coupling

    VCU-36-NH
    Vehicle Cooling Unit – 36″ with NH Adapter – NPT-Female to NH Male Adapter and Cap

    VCU-36-E
    Vehicle Cooling Unit – 36″ Extension
