Bulkhead Ladder Access System w/ 7-3/4" Ladder Support
Bulkhead Ladder Access System w/ 7-3/4" Ladder Support
× Full View

Ladder Access System - Bulkhead Electric

Documents

Documents

Model:
LAS-BHM-_
Share With

Description

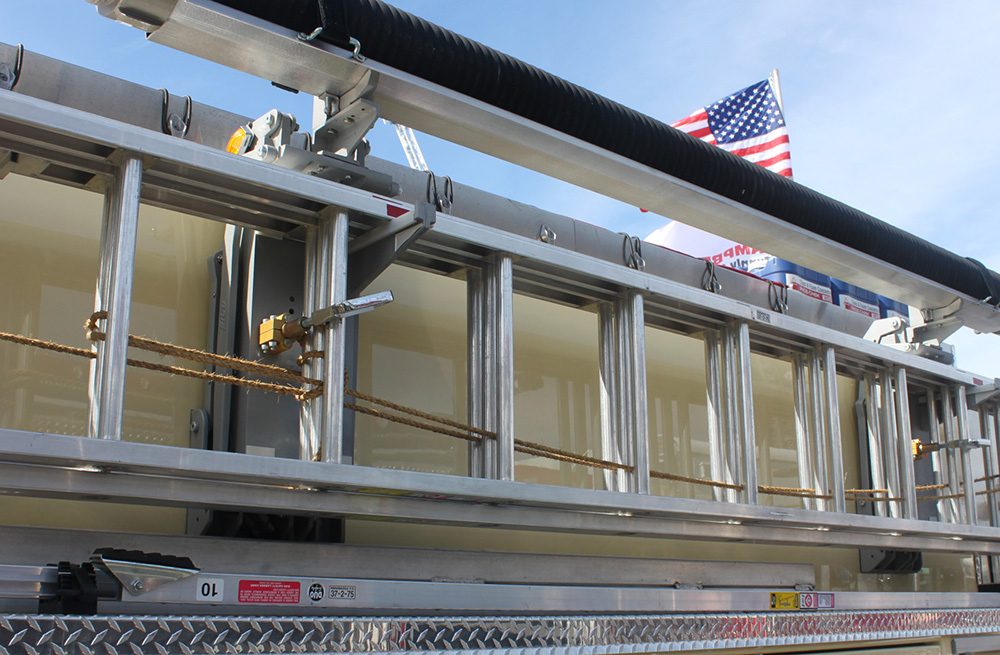

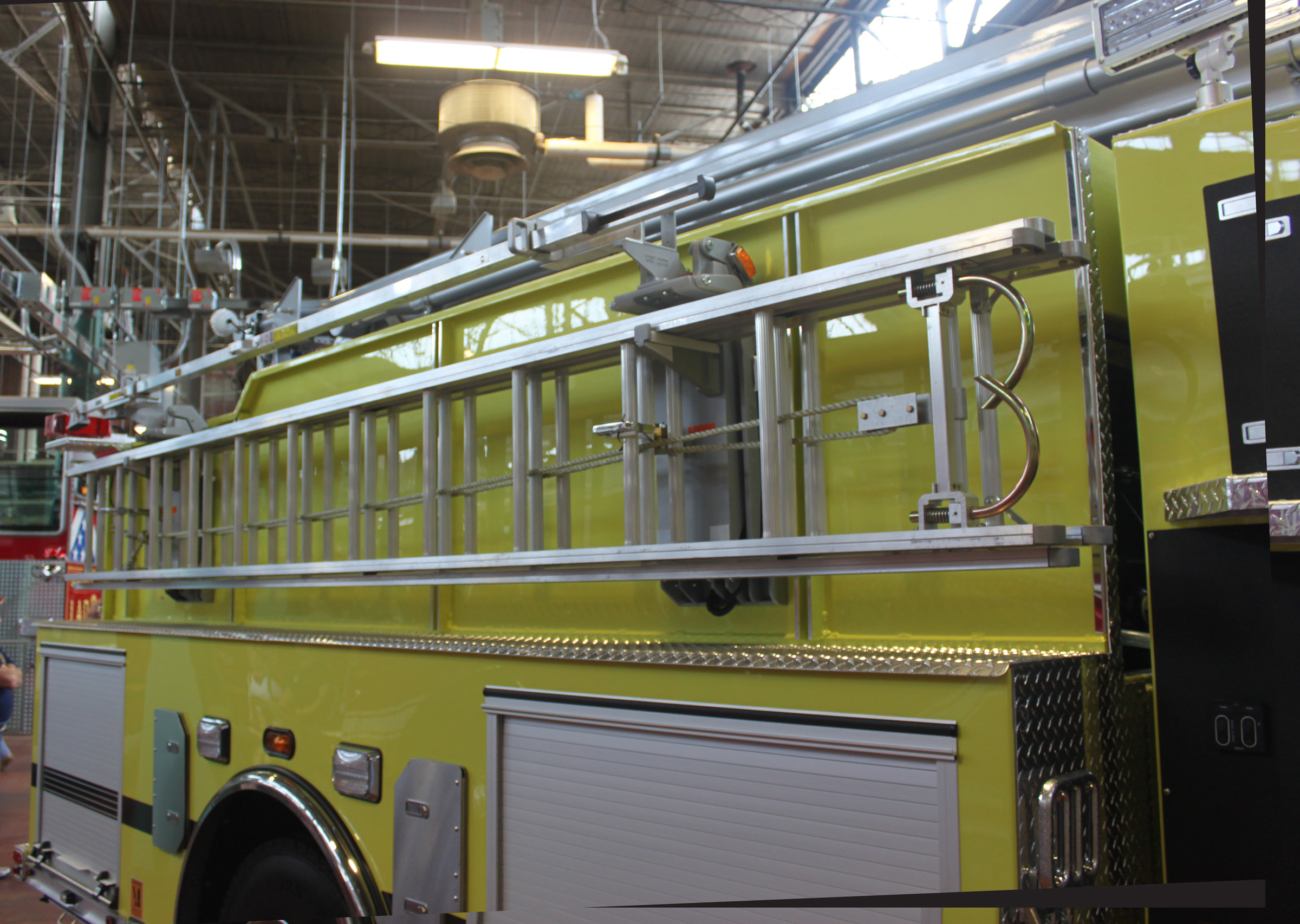

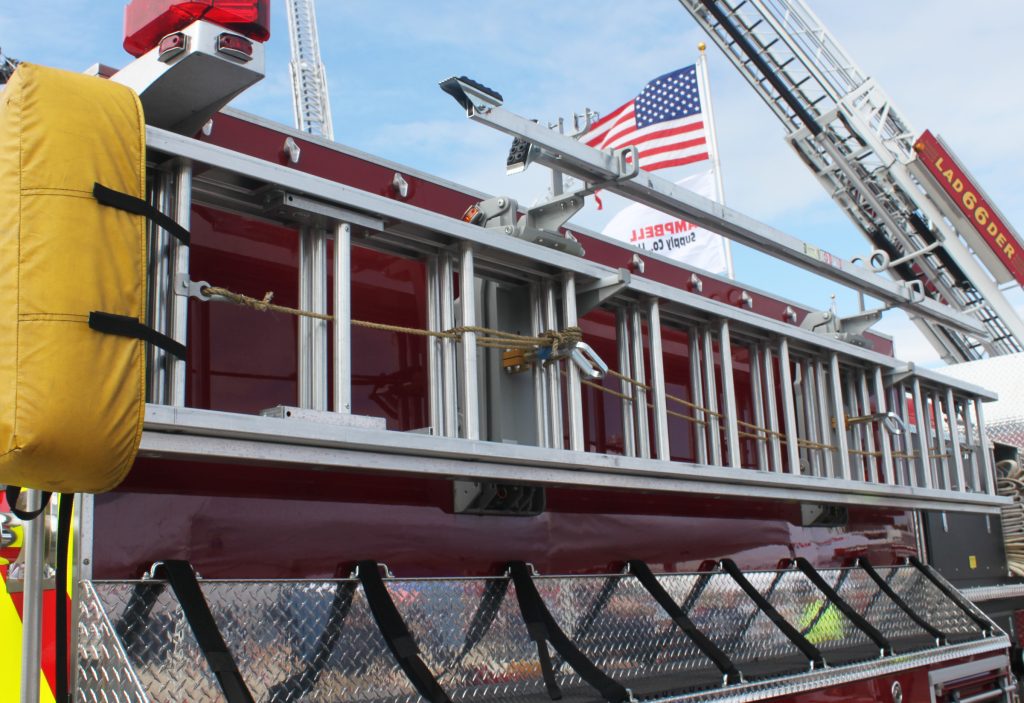

Our Bulkhead Ladder System mounts directly to the wall of your apparatus, freeing up space for storage of high-rise packs, folding ladders, pike poles, and other equipment below. A backing plate should be used to distribute the load across the mounting surface.



Features:

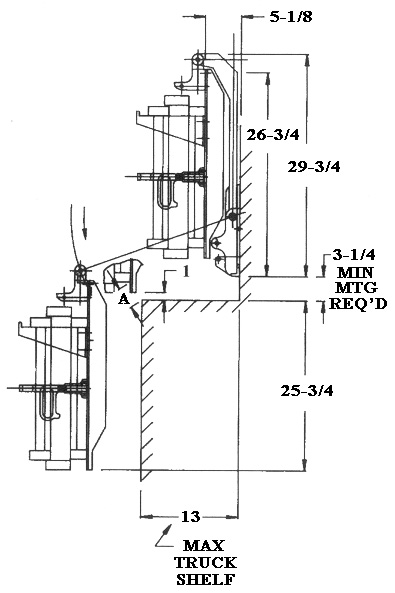

- Lowers ladders 31 inches from the stored position to a convenient height for safe & easy retrieval, reducing risk of strains and other common injuries.

- Powered by two high-cycle 12V electric actuators with a maximum load of 300 lb.

- Ladders remain close to the apparatus when lowered for better operation in tight spaces.

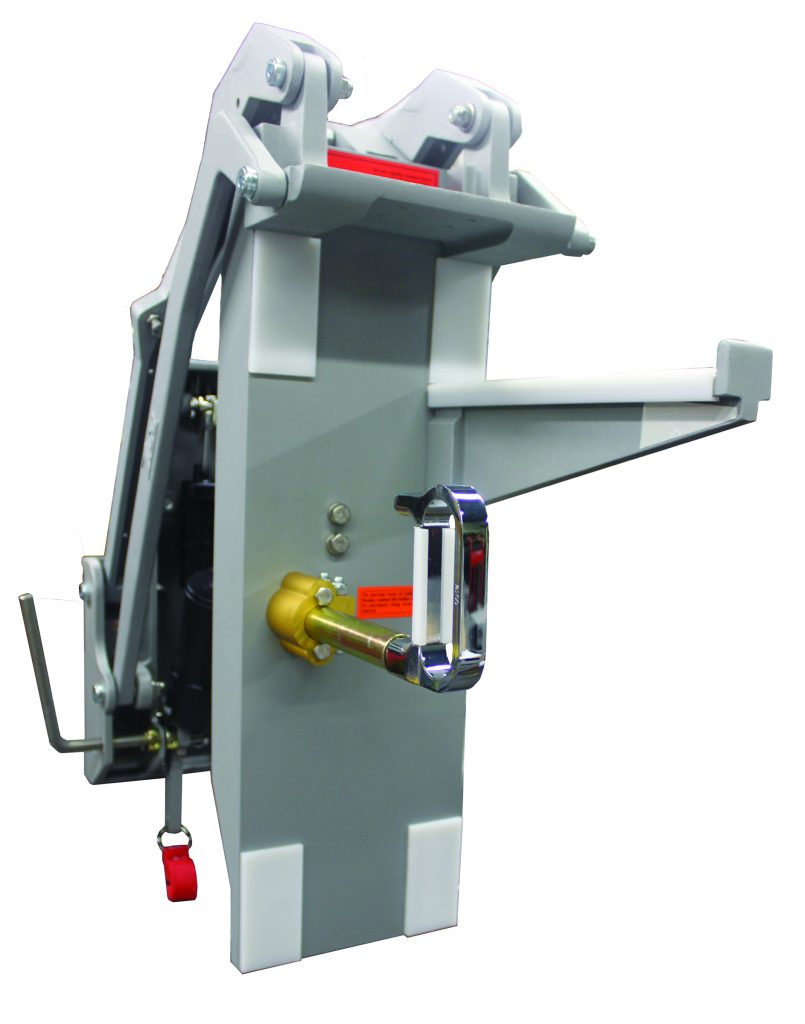

- Castings are solid, heavy-duty yet lightweight powder-coated cast aluminum. Can be mounted to a vertical surface only.

- A spring-loaded handle helps keeps ladders firmly secured to the unit.

- NFPA compliant. A Flashing Light Kit provides a visual signal when the system is out of the stored position. An optional Audio/Visual Alarm is also available (see Model AVA).



An optional locking system is recommended when consistently dealing with rough terrain, such as railroad tracks, or when mounting a hard sleeve to the unit. See Models LLAS-BHM-MLS and LLAS-BHM-ELS.

To mount a hard sleeve to the unit, order one Model LAS-FLB, one Model HSS-TMC, one Model HSS-SAT-10, and one Model HSS-TMH.



Systems Available:

Model LAS-BHM: Basic Unit

Model LAS-BHM-775: Complete System with 7-3/4" Ladder Support

Model LAS-BHM-975: Complete System with 9-3/4" Ladder Support

Model LAS-BHM-1200: Complete System with 12" Ladder Support



Ordering Your LAS-BHM System:

When ordering, please be prepared with the following information:

1.) Manufacturer of ladders to be mounted

2.) Model numbers of ladders to be mounted

3.) Length of each ladder

4.) Fire department name, city, and state (for unit registration)
