12" Width: 1 Step Fold-down & 3 Step Straight 18" Width: 2 Step Fold-down & 6 Step Straight 12" Width: 1 Step Fold-down & 3 Step Straight

12″ Width Swing Out & Down Vehicle Ladders

Documents

  • Description

    Made to order. Built to last.

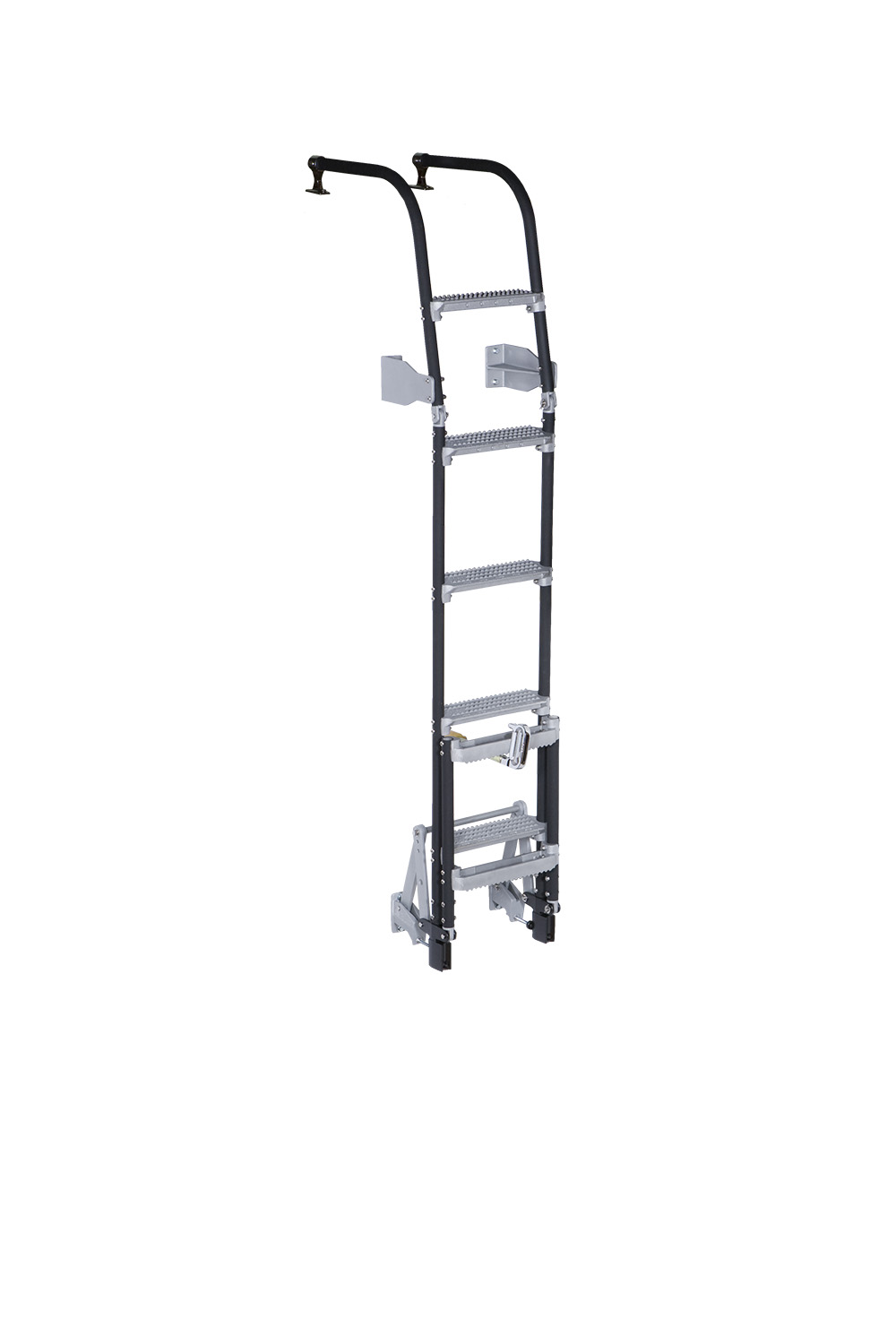

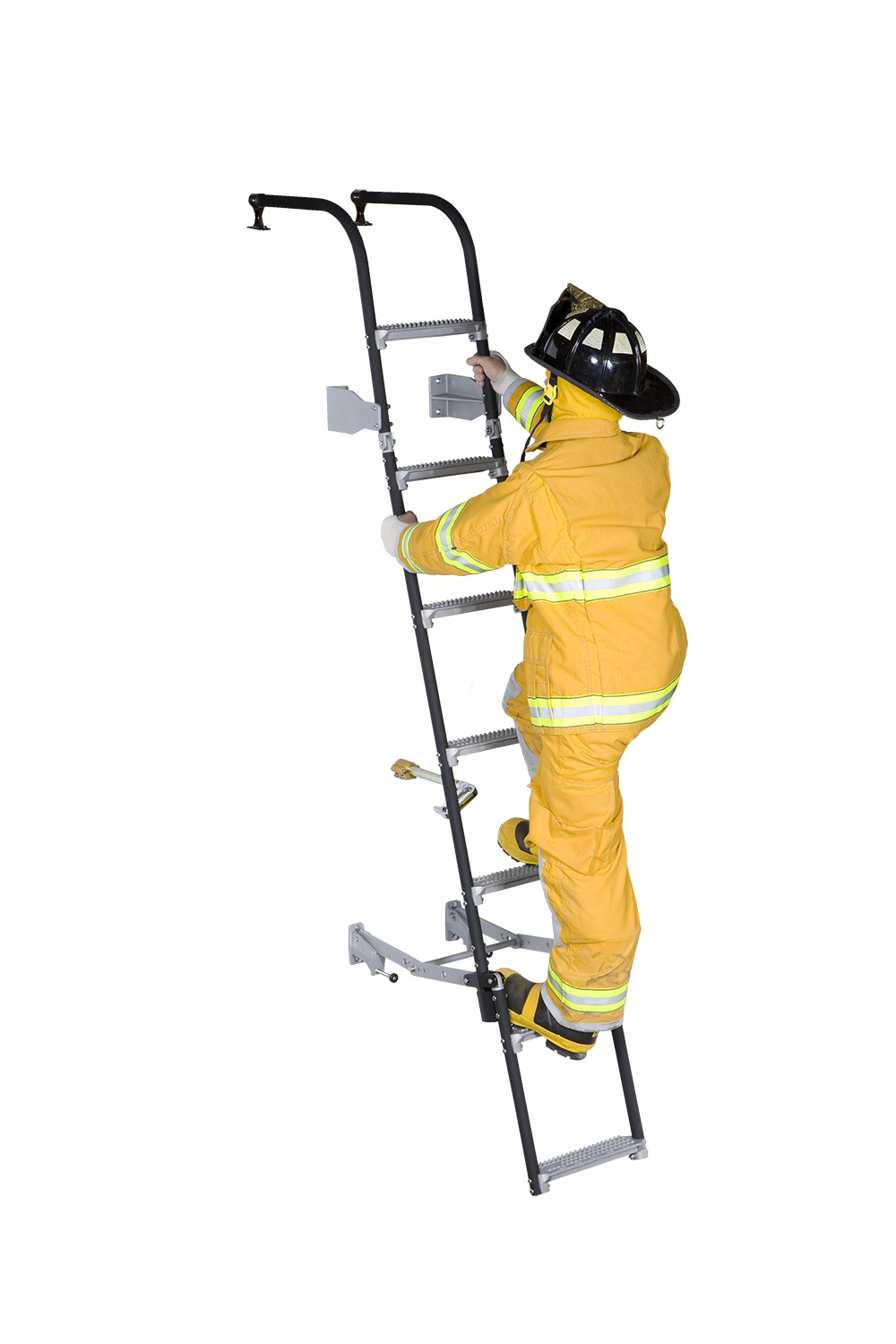

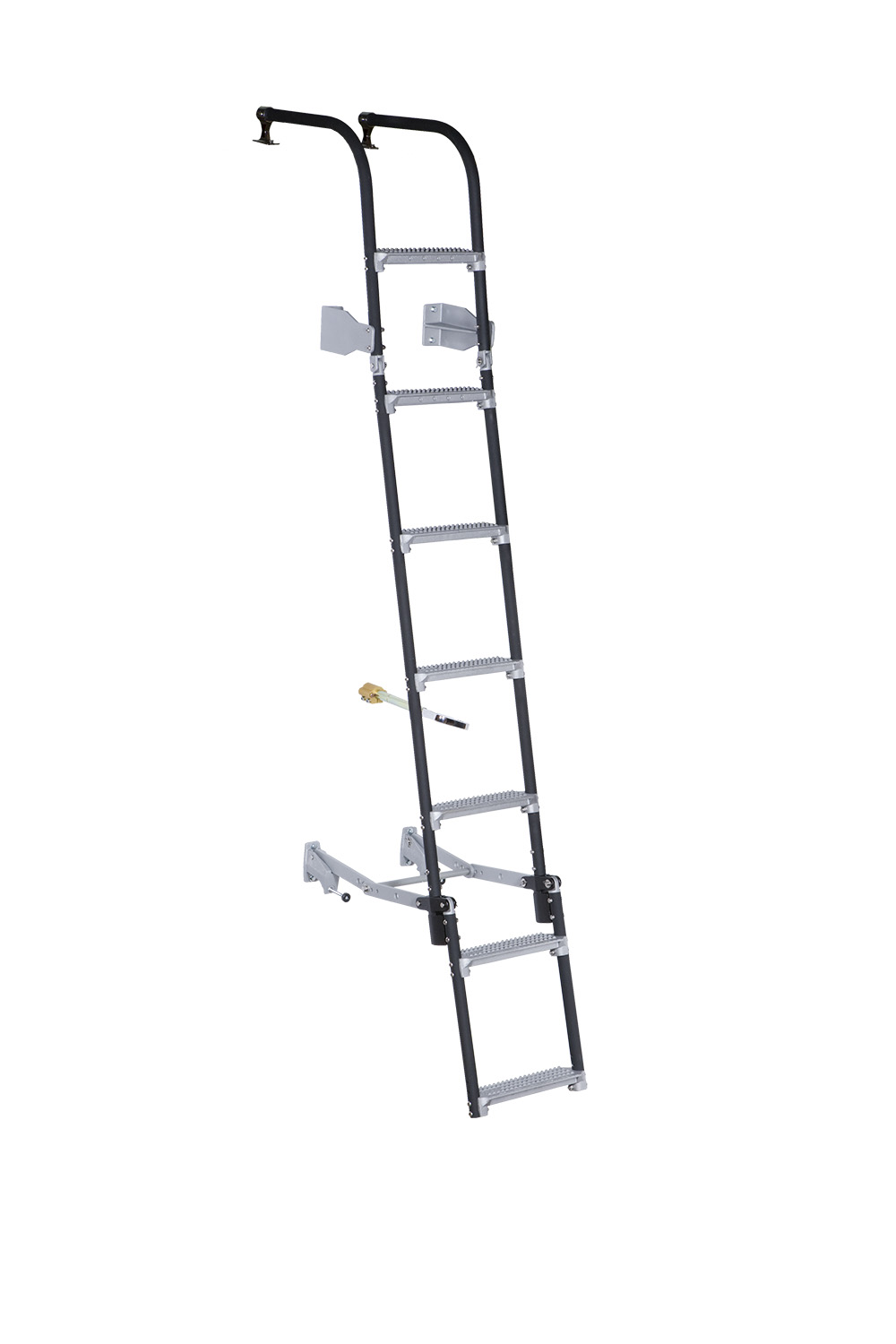

    Store ladder parallel to apparatus body. Release the locking handle and pull the ladder out to a comfortable climbing angle when needed. The ladder automatically latches and will not retract until the scissor lock is raised.

    3″ deep cast aluminum rungs have a flat, non-skid surface for traction and safety. Handrails are 1-1/4″ heavy-walled aluminum tubing, covered in a rough-grip black powder-coat.

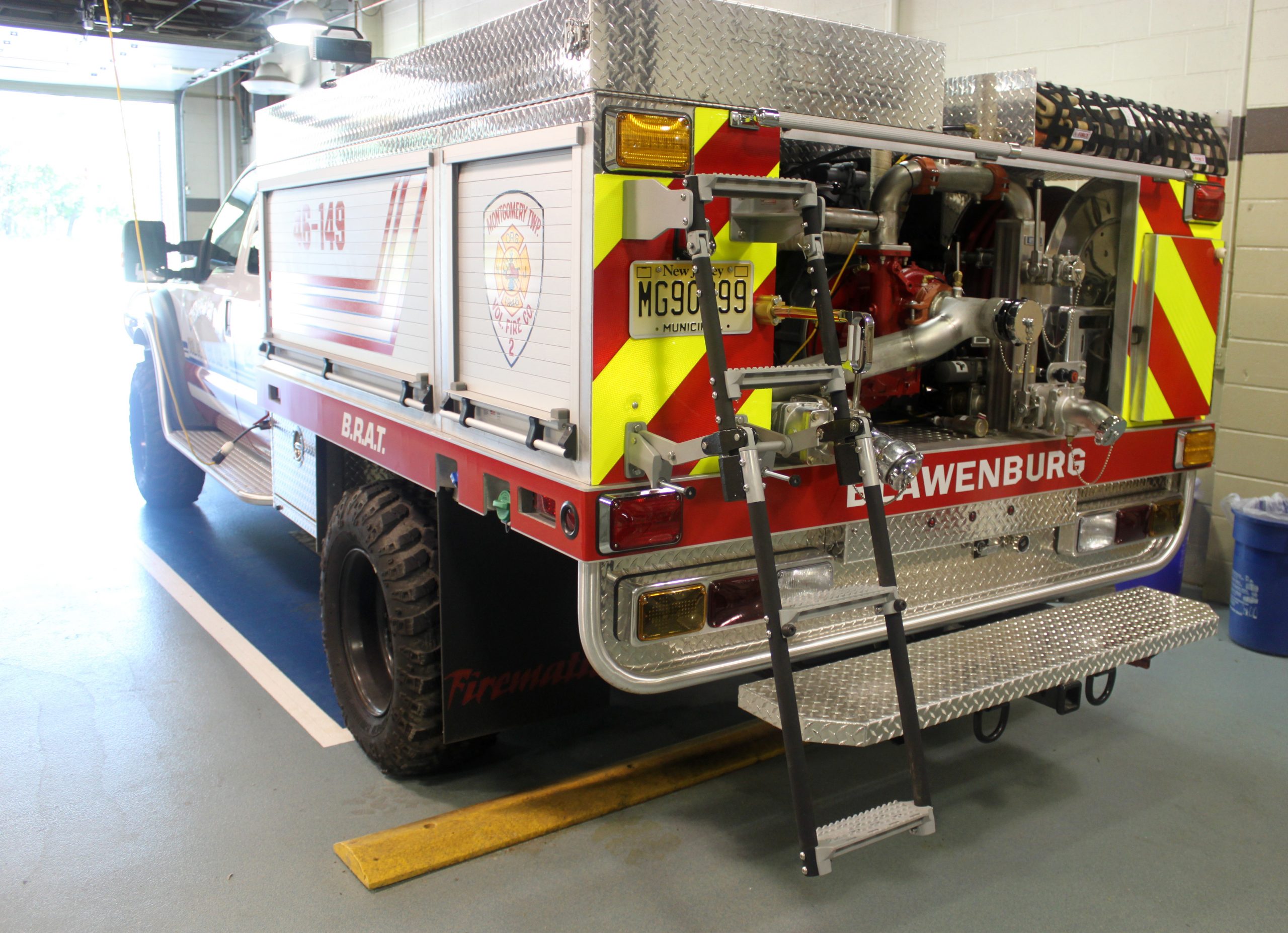

    Ladders are custom-made to fit your truck. Provide us with a rear-end dimensional drawing of your vehicle and we will design a ladder to meet your individual needs.



    Available Models:

    RL12-1-3: One step fold-down and three step straight section

    RL12-1-4: One step fold-down and four step straight section

    RL12-1-5: One step fold-down and five step straight section

    RL12-1-6: One step fold-down and six step straight section

    RL12-1-7: One step fold-down and seven step straight section

    RL12-1-8: One step fold-down and eight step straight section

    RL12-2-2: Two step fold-down and two step straight section

    RL12-2-3: Two step fold-down and three step straight section

    RL12-2-4: Two step fold-down and four step straight section

    RL12-2-5: Two step fold-down and five step straight section

    RL12-2-6: Two step fold-down and six step straight section

    RL12-2-7: Two step fold-down and seven step straight section
