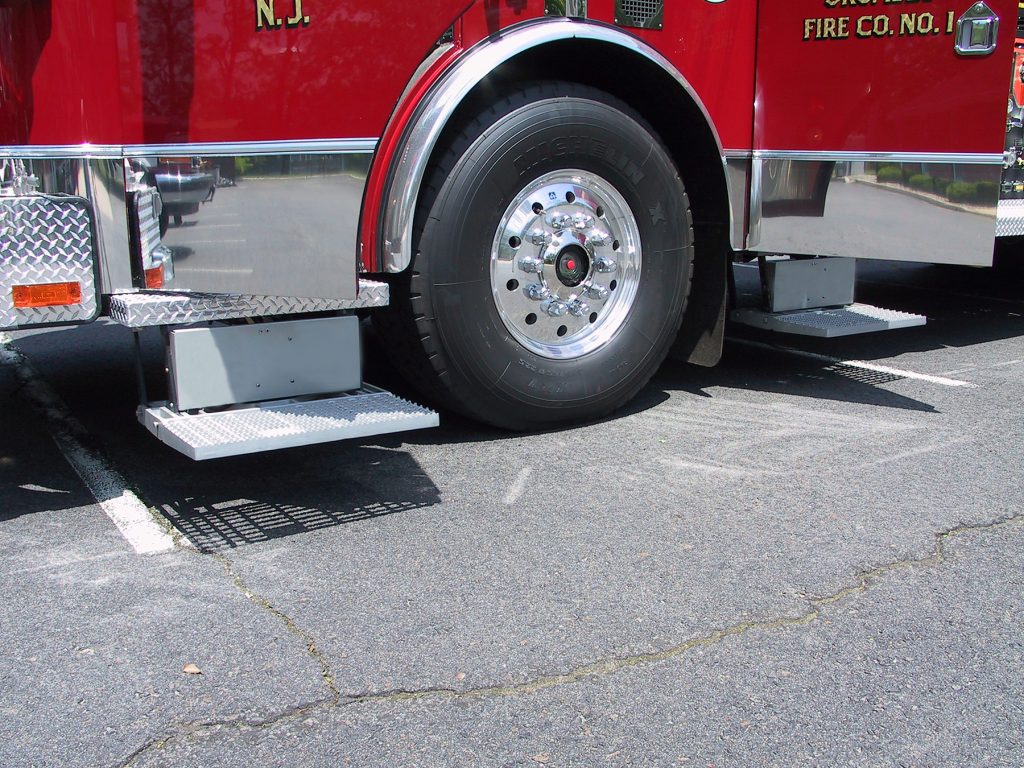

VS-24-11 Extended

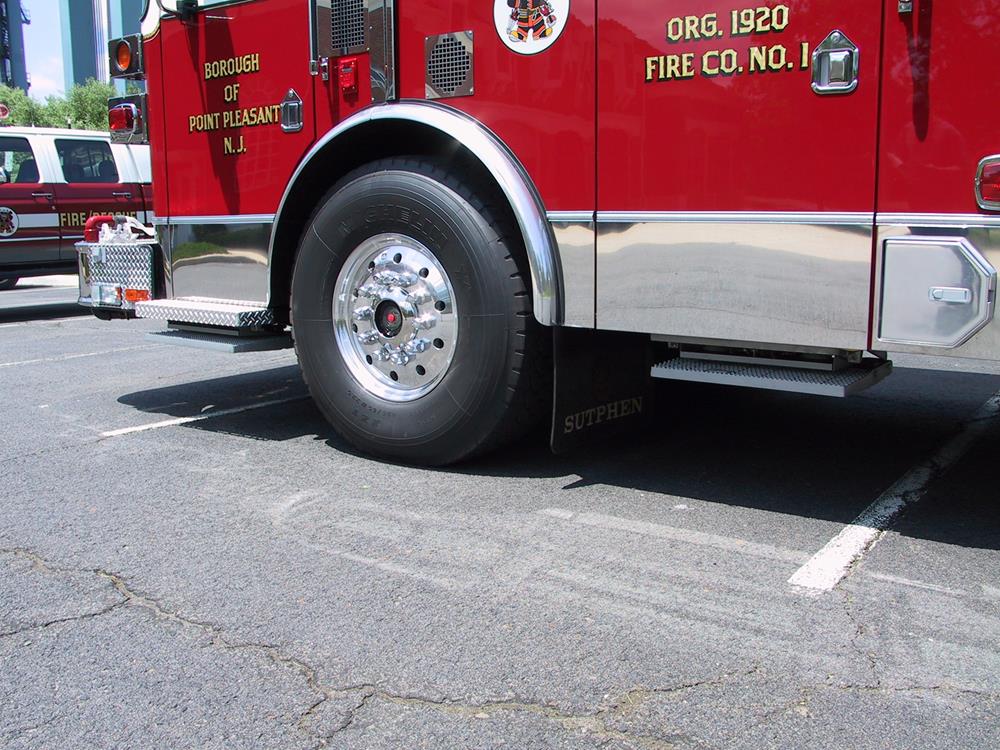

VS-24-11 Extended VS-24-11 Retracted VS-24-11 Step Up

Retractable Vehicle Step – 10-1/2″ Drop

Documents

Documents

  • Description

    Features:
    – Large stepping surface, ideal for fire apparatus
    – Powered by a 12v electric actuator with a patented in-line locking mechanism to hold step rigidly in place
    – Step may be wired to the door interlock system to automatically extend when door is opened and retract when door is closed
    – May be retrofitted onto existing apparatus
    – Low maintenance
    – Made from high-strength aluminum alloy and steel for maximum durability
    – Powder-coated and plated for corrosion resistance
    – Step stops when sensing resistance/obstacles in its path, resulting in improved property damage prevention and reduced risk of injury

    Specs:
    – 24″W x 10-5/8″D non-skid stepping surface
    – 10-1/2″ drop distance
    – Sustains a static load of 500 lb.
    – Meets NFPA requirements for slip resistance and static load

    Now standard with a self-contained, solid state, polarity-reversing motor controller! Eliminates need for a complex circuit and makes step installation more “Plug and Play.”
