MVNB-1
MVNB-1 MVNB-1 MVNB-1 MVNB-1 MVNB-1 MVNB-1 MVNB-1 Diagram

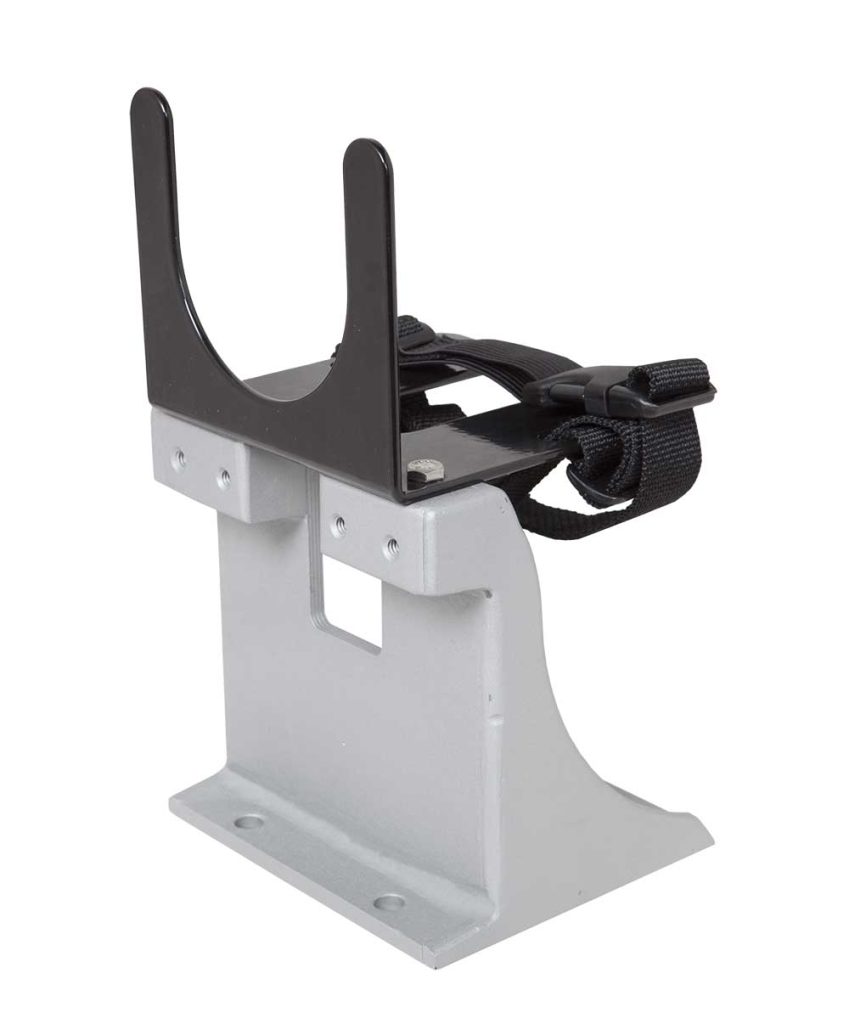

Multiversal Nozzle Bracket

Documents

Documents

Model: MVNB-1 Categories: , , Tags: ,
  • Description

    One Mount. Four Configurations.

    Mounted the base vertically or horizontally to an apparatus, then adjust the top bracket to hold the nozzle either vertically or horizontally.

    Base is heavy-duty cast aluminum. The top bracket is PVC-coated to protect the nozzle.

    The bracket can hold nozzles with up to a maximum handle width of 1-1/2″, a maximum handle length of 4-3/8″, and a maximum nozzle diameter of 3-1/2″.
