Cylinder Mounting System – Base Strap w/ ABM-1 Extrusion

Documents

Documents

  • Description

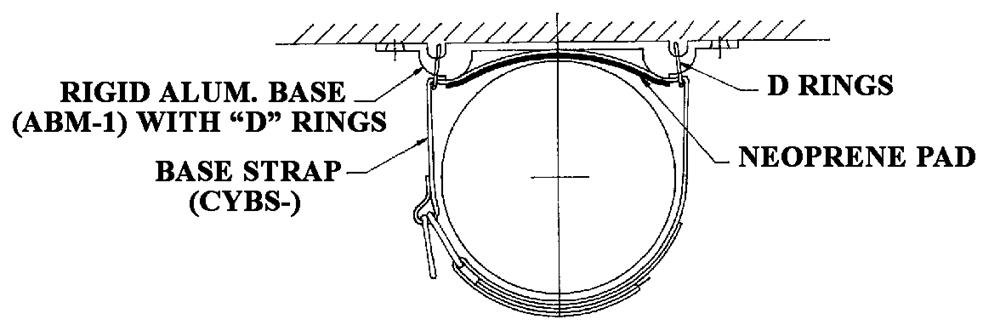

    Comprised of one base strap (CYBS) plus one aluminum base mount with “D” rings (ABM-1).

    One CYBM unit will retain one cylinder. Two units should be used with any cylinder if the base is unsupported, or if the weight of the cylinder exceeds 50 lb. or 3′ in length. Three units are suggested if the cylinder weight exceeds 100 lb. or 4′ in length.

    Sizes Available:

    Model CYBS-1213-40-11:

    4″ cylinder diameter, 12-13″ circumference range.

    Suggested uses: “B”, “D”, & “E” gas cylinders, Amerex 2-1/2# Halon, Amerex 2-1/2# Dry Chem.

    Model CYBS-1315-45-11:

    4-1/2″ cylinder diameter, 13-15″ circumference range.

    Suggested uses: Amerex 5#, Nitrous oxide cylinder 2#

    Model CYBS-1516-50-11:

    5″ cylinder diameter, 15-16″ circumference range.

    Suggested uses: 5″ 30-40 cu. ft. SCUBA, Amerex 5# Halon

    Model CYBS-1618-55-11:

    5-1/2″ cylinder diameter, 16-18″ circumference range.

    Suggested uses: 4500 PSI 30 min. SCBA, Nitrous oxide cylinder 5#

    Model CYBS-1820-60-11:

    6″ cylinder diameter, 18-20″ circumference range.

    Suggested uses: Amerex 5# Dry Chem, 1/2 gal. Igloo cooler, Nitrous oxide cylinder 10#

    Model CYBS-2123-70-11:

    7″ cylinder diameter, 21-23″ circumference range.

    Suggested uses: 2216 PSI 30 min. SCBA cylinder, 4500 PSI 45 min. SCBA, 4500 PSI 60 min. SCBA, Standard 45-100 cu. ft. SCUBA, “M” gas cylinders, Amerex 10# Dry Chem, Amerex 2-1/2 gal. pressurized water

    Model CYBS-2426-80-11:

    8″ cylinder diameter, 24-26″ circumference range.

    Suggested uses: Super 80-100 cu. ft. SCUBA, 6-3/4″ & 7″ SCBA/backpacks & regs, 1 gal. Gott cooler, Ansul 20# Dry Chem, Stop Fire 20# CO2.

    Model CYBS-2627-85-11:

    8-1/2″ cylinder diameter, 26-27″ circumference range.

    Suggested uses: Nitrous oxide cylinder 15 & 20#

    Model CYBS-2729-90-11:

    9″ cylinder diameter, 27-29″ circumference range.

    Suggested uses: “G” & “H” gas cylinders, Amerex 9 & 13# Halon, 1 gal. Igloo cooler
